Positioner (Tilt Operation: Manual)

TVP-160MC10 Positioner (Timer Type)

1.) Max load: 200Kgs
2.) Table rotation torque: 4.0 Kg.m
3.) Table tilt operation: manual
4.) Tilt angle: -90 ~ 90 degrees
5.) Timer/Inch welding

●100% Made in TAIWAN

TVP-160MC11 Positioner (Hold Type)

1.) Max load: 200Kgs
2.) Table rotation torque: 4.0 Kg.m
3.) Table tilt operation: manual
4.) Tilt angle: -90 ~ 90 degrees
5.) Hold/Inch welding

●100% Made in TAIWAN

TVP-160MC18 Positioner (Overlap Type)

1.) Max load: 200Kgs
2.) Table rotation torque: 4.0 Kg.m
3.) Table tilt operation: manual
4.) Tilt angle: -90 ~ 90 degrees
5.) Overlap/Timer/Inch welding

●100% Made in TAIWAN

EVPOS-150M Positioner

1.) Max load: 150Kgs
2.) Table rotation torque: 2.25 Kg.m
3.) Table tilt operation: manual
4.) Timer/Inch welding

●100% Made in TAIWAN

EVPOS-150MS Positioner

1.) Max load: 150Kgs
2.) Table rotation torque: 2.25 Kg.m
3.) Table tilt operation: manual
4.) Hold/Inch welding

●100% Made in TAIWAN

EVPOS-300M Positioner

1.) Max load: 300Kgs
2.) Table rotation torque: 3.6 Kg.m
3.) Table tilt operation: manual
4.) Hold/Inch welding

●100% Made in TAIWAN

EVPOS-300MCA Positioner

1.) Max load: 300Kgs
2.) Table rotation torque: 3.6 Kg.m
3.) Overlap/Timer/Inch welding
4.) For 2-cycle/4-cycle welding machine
5.) Table tilt operation: manual

●100% Made in TAIWAN

EVPOS-500M Positioner

1.) Max load: 500Kgs
2.) Table rotation torque: 30.0 Kg.m
3.) Table tilt operation: manual
4.) Hold/Inch welding

●100% Made in TAIWAN



EVPOS-500MCA Positioner

1.) Max load: 500Kgs
2.) Table rotation torque: 30.0 Kg.m
3.) Overlap/Timer/Inch welding
4.) For 2-cycle/4-cycle welding machine
5.) Table tilt operation: manual

●100% Made in TAIWAN



EVPOS-750M Positioner

1.) Max load: 750Kgs
2.) Table rotation torque: 52.5 Kg.m
3.) Table tilt operation: manual
4.) Hold/Inch welding

●100% Made in TAIWAN



EVPOS-750MCA Positioner

1.) Max load: 750Kgs
2.) Table rotation torque: 52.5 Kg.m
3.) Overlap/Timer/Inch welding
4.) For 2-cycle/4-cycle welding machine
5.) Table tilt operation: manual

●100% Made in TAIWAN

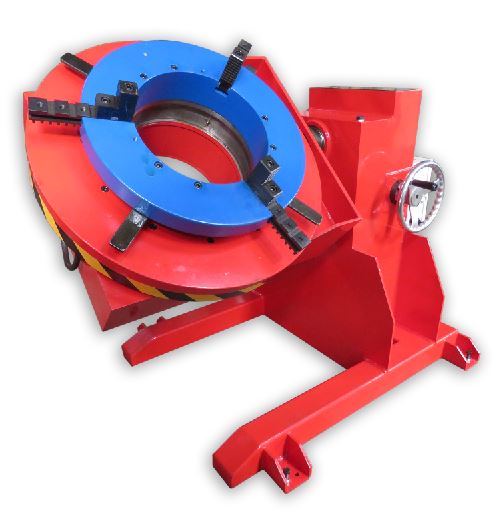

TPM-365 Tube Positioner

1.) Max load: 300Kgs
2.) Table rotation torque: 20.0 Kg.m
3.) Have spindle thru hole, diameter: 365mm
4.) Table tilt operation: manual
5.) Hold/Inch welding
6.) Pre-install one RD-16X chuck

100% Made in TAIWAN
