Robotic Peripherals

RSP-N Series Dual-Axis Servo Positioner

1.) Several specifications are available(Max load): 300kg, 500kg, 750kg, 1000kg
2.) Rotation Angle Error: ± 0.15°
3.) Tilt Angle Error: ± 0.15°
4.) Can be controlled by any brand of robot system.
5.) Does not include servo motor. Requires servo motors provided by the robot supplier.
6.) See catalog for more details.

● 100% Made in TAIWAN

RSC2S Series Dual-Axis Servo Control Unit

1.) Several specifications are available.(Correspond to the spec of "RSP-N Servo Positioner")
2.) Brand of Servo Motor and Servo Driver: Delta Electronics
3.) Communication Protocol: EtherCAT
4.) Without independent controller, need to be controlled by the robot system directly.
5.) Does not include corresponding "RSP-N Servo Positioner".
6.) See catalog for more details.

● 100% Made in TAIWAN

RSC2S-P Series Dual-Axis Servo Controller

1.) Several specifications are available.(Correspond to the spec of "RSP-N Servo Positioner")
2.) Brand of Servo Motor and Servo Driver: Delta Electronics
3.) Communication Protocol: I/O Interface
4.) Functions in I/O mode: Workpiece Positioning, Circumferential Welding, Division Workstation
5.) Equipped with an independent controller, can operate the positioner independently.
6.) Functions in controller mode: Position point setting, Position point parameter setting
7.) Does not include corresponding "RSP-N Servo Positioner".
8.) See catalog for more details.

● 100% Made in TAIWAN

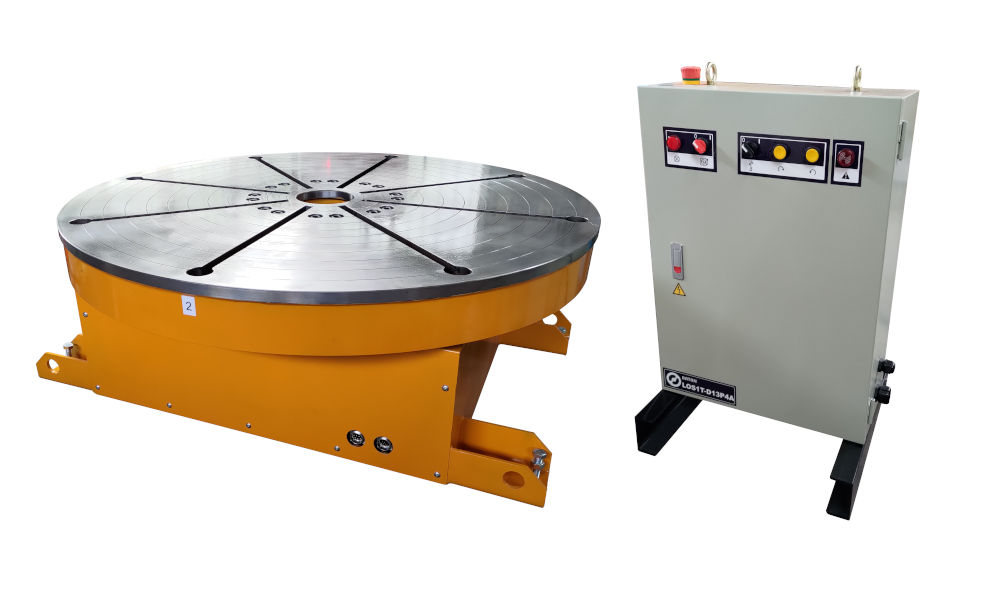

LOS1T-DPA Indexing Flat Positioner

1.) Max Load: 1,000 Kgs
2.) Table Diameter: 1,300 mm (Standard)
3.) Indexing Point: 4 point (Standard)
4.) Positioning Error: ± 0.15 degree
5.) Communication Protocol: I/O Interface
6.) Customization is available.

● 100% Made in TAIWAN

POS1CC18R Turn Table (For Robots)

1.) Max Load: 160 kgs
2.) Have spindle thru hole, diameter: 58 mm
3.) Overlap/Timer/Inch welding
4.) Basically suitable for all brands of robot arm.
5.) Grip workpiece after the tilt angle of table is locked.

● 100% Made in TAIWAN

POS2CC18R Turn Table (For Robots)

1.) Max Load: 290 kgs
2.) Have spindle thru hole, diameter: 58 mm
3.) Overlap/Timer/Inch welding
4.) Basically suitable for all brands of robot arm.
5.) Grip workpiece after the tilt angle of table is locked.

● 100% Made in TAIWAN

POSD120DC18R Turn Table (For Robots)

1.) Max Load: 400 kgs
2.) Have spindle thru hole, diameter: 120 mm
3.) Overlap/Timer/Inch welding
4.) Basically suitable for all brands of robot arm.
5.) Grip workpiece after the tilt angle of table is locked.

● 100% Made in TAIWAN

CSR-30T Special-Shaped Workpiece Welding Roller

1.) Max Load: 30,000 Kgs
2.) Roller Material: PU
3.) Control System: PLC + HMI
4.) Controller Function: Manual Mode, Robotic Connection Mode
5.) Connection Protocol: Ethernet

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan

RM-1450C Welding Robot

1.) Working radius: 1,450 mm
2.) Max wrist load: 6 kg
3.) Repeatability: ± 0.05 mm
4.) Robot body weight: 130 kg
5.) Can control up to 6 external servo axes.
6.) Touch-screen teach pendant design, easy to learn and use.
7.) Can control welding parameters directly on teach pendant, able to save up to 99 sets of welding parameters.
8.) Have tactile offset correction function, improving overall yield of mass production.
