Hydraulic Molding Machinery

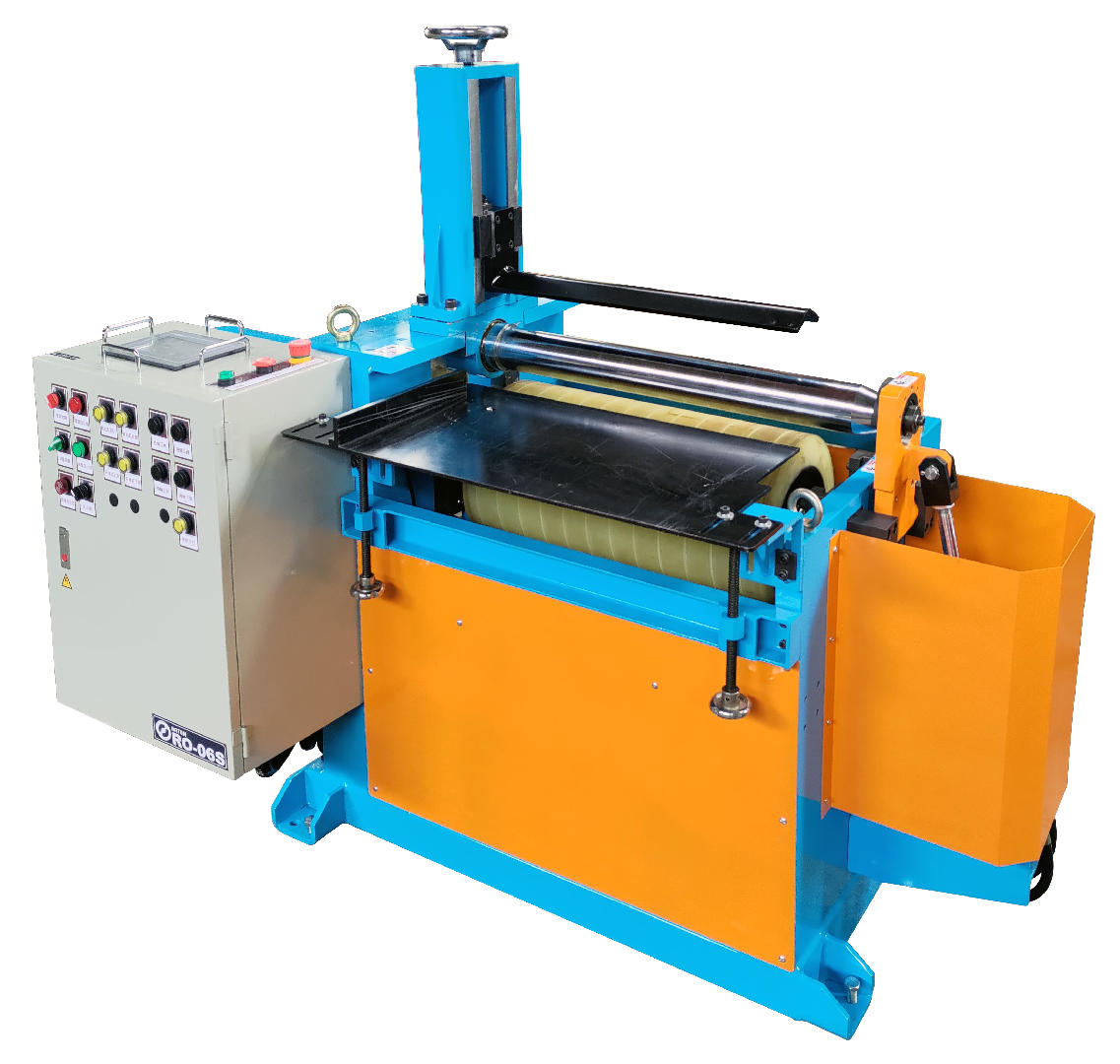

RO Series Hydraulic Rolling Machine

1.) This series rolling machine according to the length of the workpiece has nine specifications:
     320mm,620mm,820mm, 1,020mm, 1,220mm, 1,420mm, 1,620mm, 1,820mm, 2,020mm
2.) Roller is rubber-coated, high oil resistance,elasticity unbreakable
3.) Pressing axis chrome plated, wear and not easy to scratch the workpiece
4.) Based on the workpiece diameter,thickness making casing, quickly rolling

●100% Made in TAIWAN



RT Series Hydraulic Cylindrical Shaping Machine

1.) This series machine according to the diameter of the workpiece has four specifications:
     125mm, 168mm, 200mm, 350mm
2.) The shaping fixture is according to internal diameter and length of the work piece
3.) The shaping fixture through the hydraulic cylinder pressure, the operation of the workpiece shaping

●100% Made in TAIWAN



ORC-450 Hydraulic Roller Edge Machine

1.) Machinery used in the cover rolling outer edge
2.) Workpiece Max. Dia : 450mm
3.) Workpiece Max. Height : 340mm
4.) Workpiece Max. Thickness : 340mm
5.) You can use different sizes of the workpiece,no need to replace the roller

●100% Made in TAIWAN



ORS-470 Hydraulic Roller Edge Machine

1.) Machinery used in the cover rolling inner edge
2.) Workpiece Max. Dia : 450mm
3.) Workpiece Max. Height : 340mm
4.) Workpiece Max. Thickness : 340mm
5.) You can use different sizes of the workpiece,no need to replace the roller

100% Made in TAIWAN

SRL-D12L04 Hydraulic flattening machine

1.) This machine is used to flatten the weld bead after the straight seam welding is completed
2.) Workpiece Dia : 120 - 800mm
3.) Workpiece Length  : 0 - 400mm
4.) Workpiece Thickness  : 0 - 3.6mm
5.) Need to make the backing plate according to the inner diameter of the workpiece

6.) Workpiece flattening to be driven by hydraulic system
