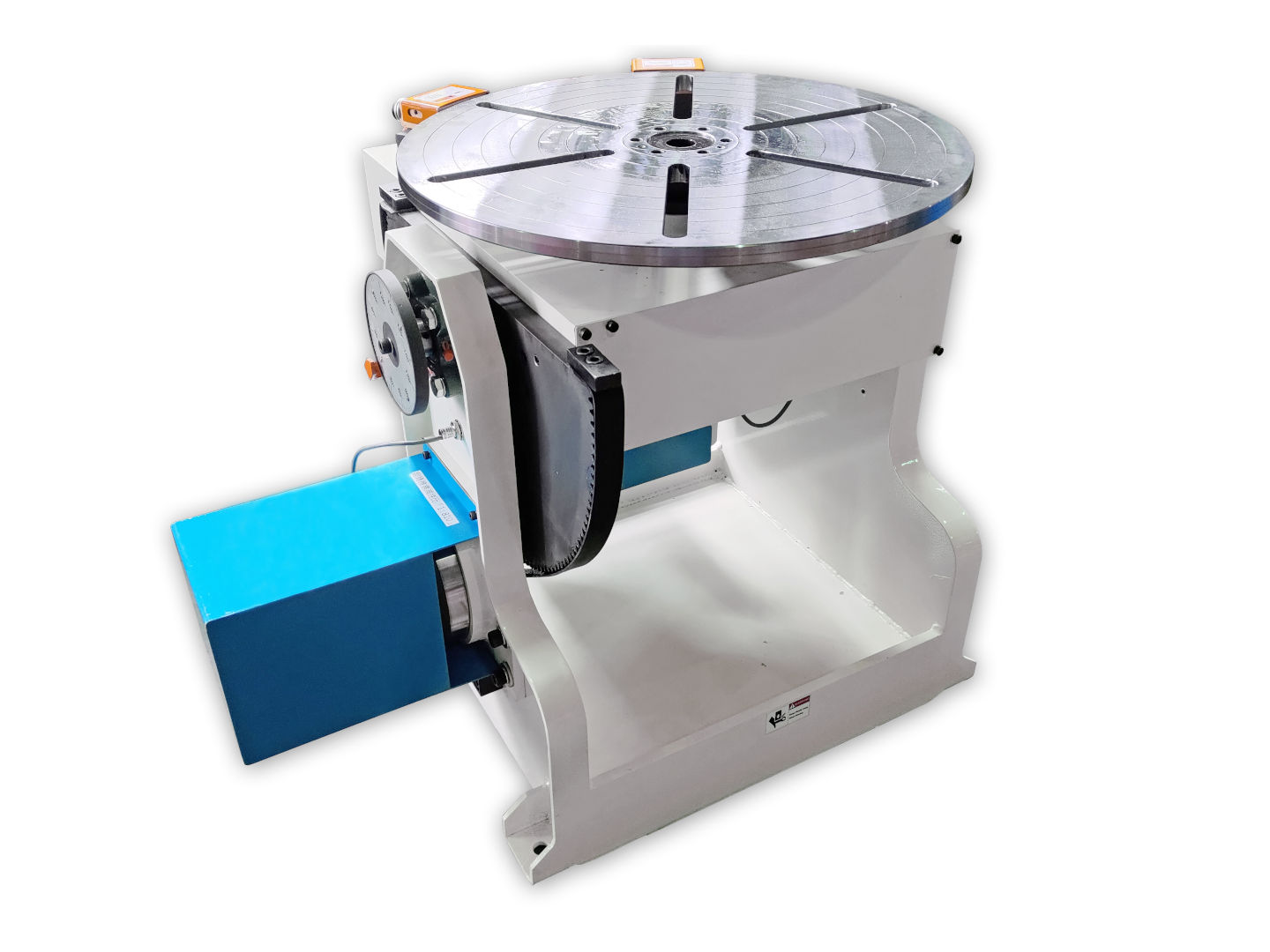

RSP-N Series Dual-Axis Servo Positioner

RSP-N Series Dual-Axis Servo Positioner

• This series has 4 standard specifications:
    RSP-300AN: Max Load 300 kg
    RSP-500AN: Max Load 500 kg
    RSP-750AN: Max Load 750 kg
    RSP-1TAN: Max Load 1000 kg
• Table Diameter: (View catalog for details)
• Spindle Thru Hole: (View catalog for details)
• Rotation Angle Error: ± 0.15°
• Reduction Ratio (Rotation): (View catalog for details)
• Tilt Angle Error: ± 0.15°
• Table Tilt Angle: - 90° ~ + 90°
• Reduction Ratio (Tilt): (View catalog for details)
• Recommended Servo Motor Spec.: (View catalog for details)
• Does not include servo motor. Positioner needs to be installed with the servo motors provided by the robot supplier.
• Does not have control unit, need to be controlled by the robot system directly.

Find us on:

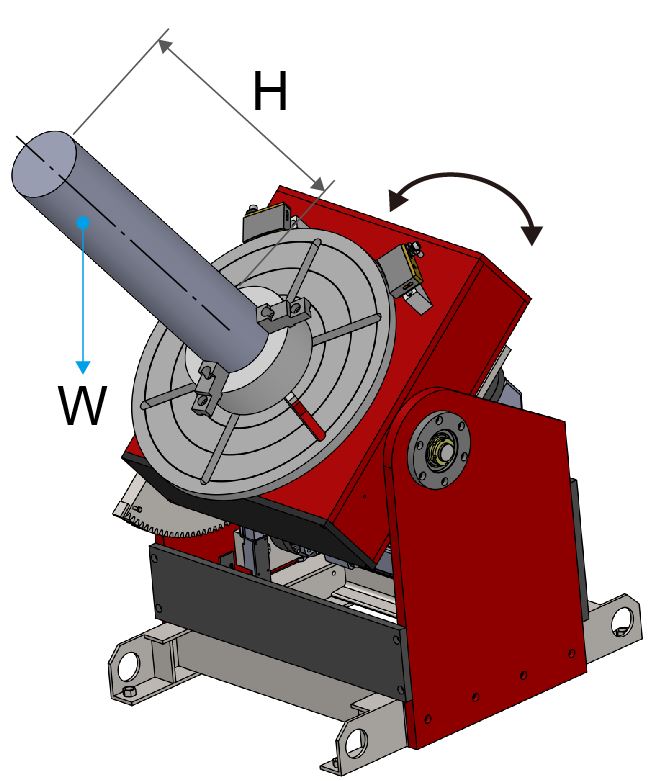

RSP-N Servo Positioner: Eccentricity Load Chart (Tilt)

W: Weight of workpiece (Fixture included)
H: Max distance from plate to edge of workpiece
    • RSP-300AN: W(kgs) × H(m) ÷ 2 ≤ 30 (kgs.m)
    • RSP-500AN: W(kgs) × H(m) ÷ 2 ≤ 87.5 (kgs.m)
    • RSP-750AN: W(kgs) × H(m) ÷ 2 ≤ 168.75 (kgs.m)
    • RSP-1TAN: W(kgs) × H(m) ÷ 2 ≤ 275 (kgs.m)

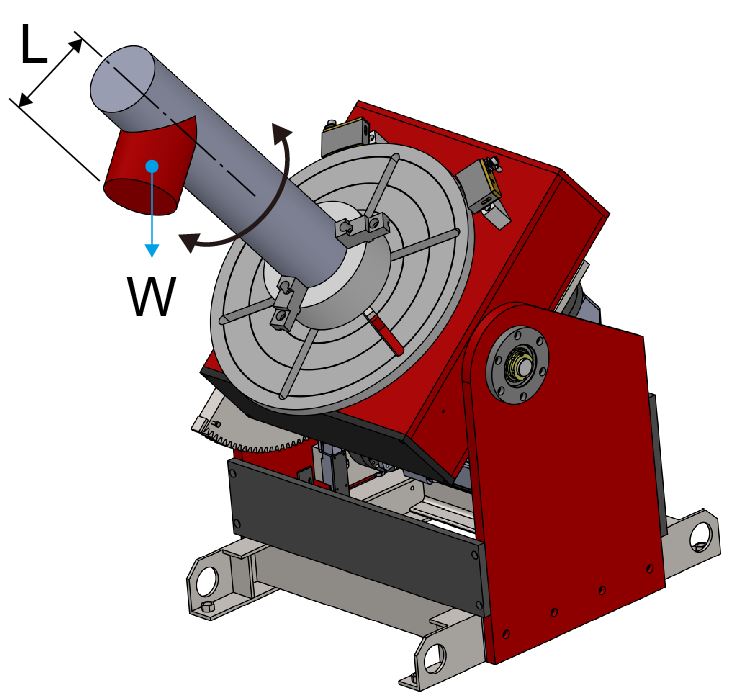

RSP-N Servo Positioner: Eccentricity Load Chart (Rotation)

W: Weight of eccentricity part of workpiece
L: Max distance from center to eccentricity part of workpiece
   • RSP-300AN: W(kgs) × L(m) ÷ 2 ≤ 7.5 (kgs.m)
   • RSP-500AN: W(kgs) × L(m) ÷ 2 ≤ 20 (kgs.m)
   • RSP-750AN: W(kgs) × L(m) ÷ 2 ≤ 35.65 (kgs.m)
   • RSP-1TAN: W(kgs) × L(m) ÷ 2 ≤ 65 (kgs.m)

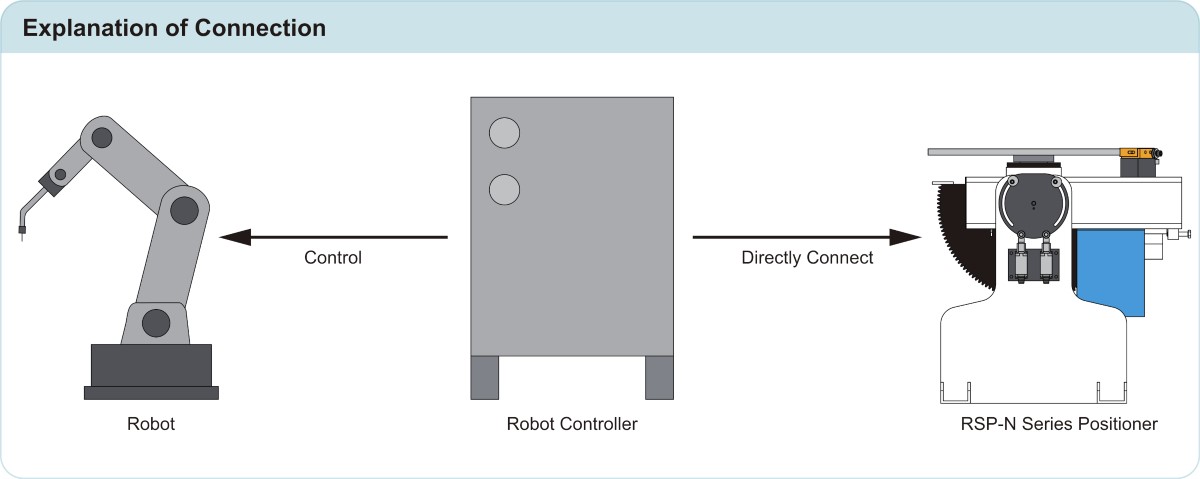

RSP-N Servo Positioner: Explanation of Connection

• 100% Made in Taiwan
