Turn Roller

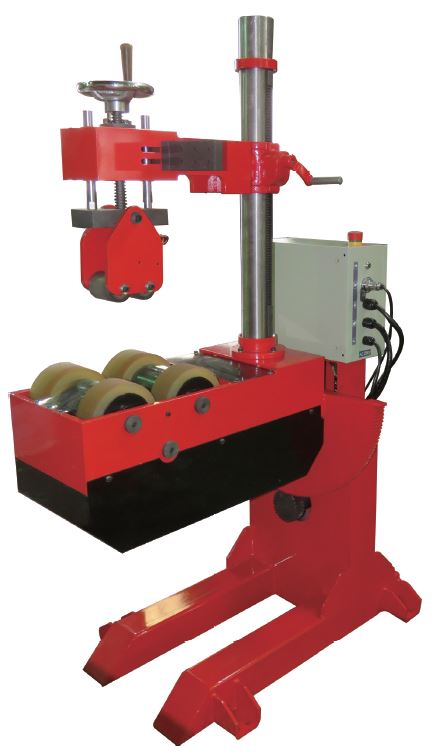

PPR-300 Pipe Roller

1.) Max load: 300Kgs

2.) Workpiece Diameter Range: 60 ~ 300mm

3.) A motor drive the wheels of both sides

4.) Manual operation of the pressure wheel

5.) Roller-module tilt operation: manual

6.) Pedal switch

7.) Hold/Inch welding

●100% Made in TAIWAN



RNR-500 Turn Roller

1.) Max Load : 500Kgs

2.) Work piece Dia : 19 - 335mm

3.) A motor drive the wheels of both sides

4.) Pedal switch

5.) Hold welding

●100% Made in TAIWAN

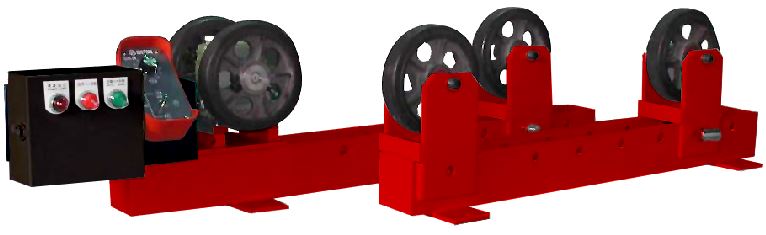

SIR-1T Turn Roller

1.) Max Load : 1,000Kgs

2.) Work piece Dia : 50 - 1,500mm

3.) A motor drive only side wheels

4.) Pedal switch

5.) Optional wireless remote control

6.) Hold welding

●100% Made in TAIWAN

SIR-3T Turn Roller

1.) Max Load : 3,000Kgs

2.) Work piece Dia : 150 - 2,000mm

3.) A motor drive only side wheels

4.) Pedal switch

5.) Optional wireless remote control

6.) Hold welding

●100% Made in TAIWAN

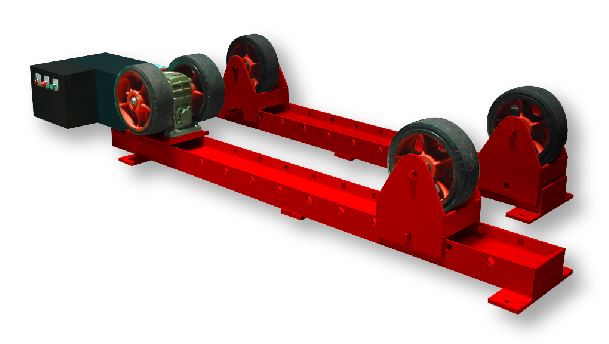

SIR-5T Turn Roller

1.) Max Load : 5,000Kgs

2.) Work piece Dia : 300 - 3,000mm

3.) A motor drive only side wheels

4.) Pedal switch

5.) Optional wireless remote control

6.) Hold welding

●100% Made in TAIWAN



PIR-10T Turn Roller (Fixed screw)

1.) Max Load : 10,000Kgs

2.) Work piece Dia : 400 - 3,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN

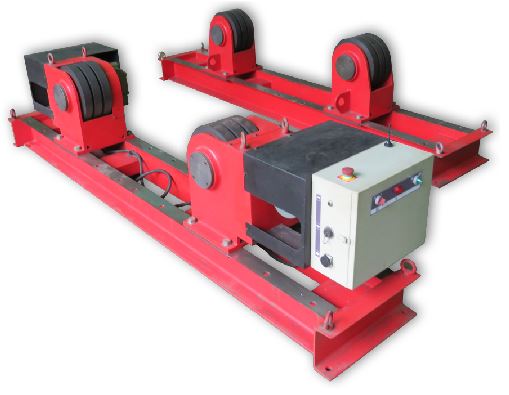

PIR-20T Turn Roller (Fixed screw)

1.) Max Load : 20,000Kgs

2.) Work piece Dia : 400 - 3,500mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN

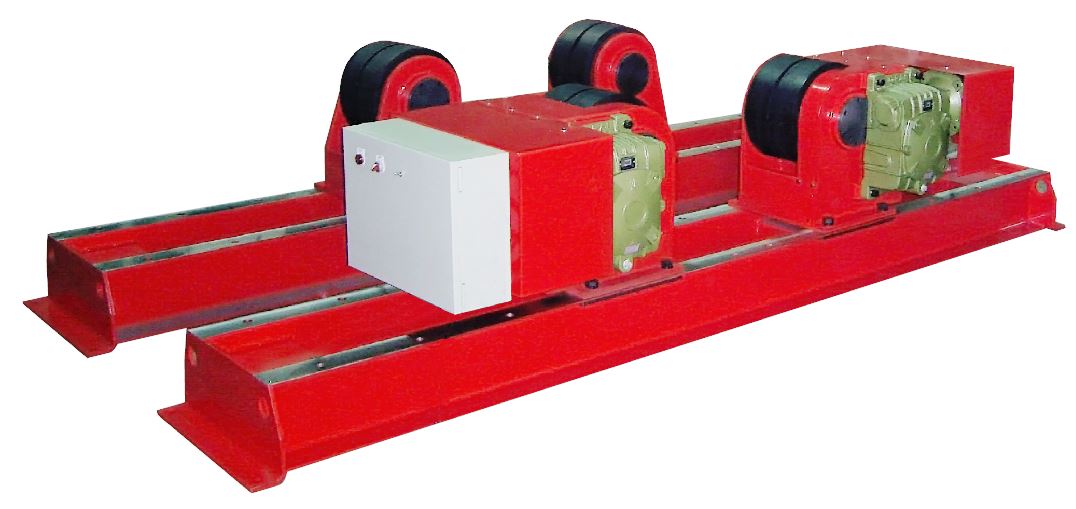

PIR-30T Turn Roller (Fixed screw)

1.) Max Load : 30,000Kgs

2.) Work piece Dia : 400 - 4,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN

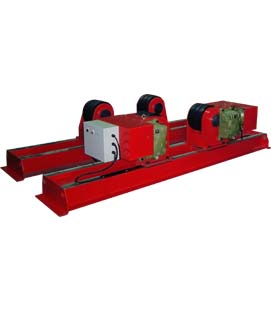

PIR-40T Turn Roller (Fixed screw)

1.) Max Load : 40,000Kgs

2.) Work piece Dia : 400 - 5,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN



PIR-60T Turn Roller (Fixed screw)

1.) Max Load : 60,000Kgs

2.) Work piece Dia : 400 - 6,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN



PIR-80T Turn Roller (Fixed screw)

1.) Max Load : 80,000Kgs

2.) Work piece Dia : 400 - 7,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN



PIR-100T Turn Roller (Fixed screw)

1.) Max Load : 100,000Kgs

2.) Work piece Dia : 400 - 7,000mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

●100% Made in TAIWAN



PIR-150T Turn Roller (Fixed screw)

1.) Max Load : 150,000Kgs

2.) Work piece Dia : 400 - 7,500mm

3.) Two motors drive the wheels of both sides

4.) It has a wireless and wired remote control

5.) Hold welding

100% Made in TAIWAN
