Customized Machinery (For Welding)

[FTWS-D03T1W.jpg]

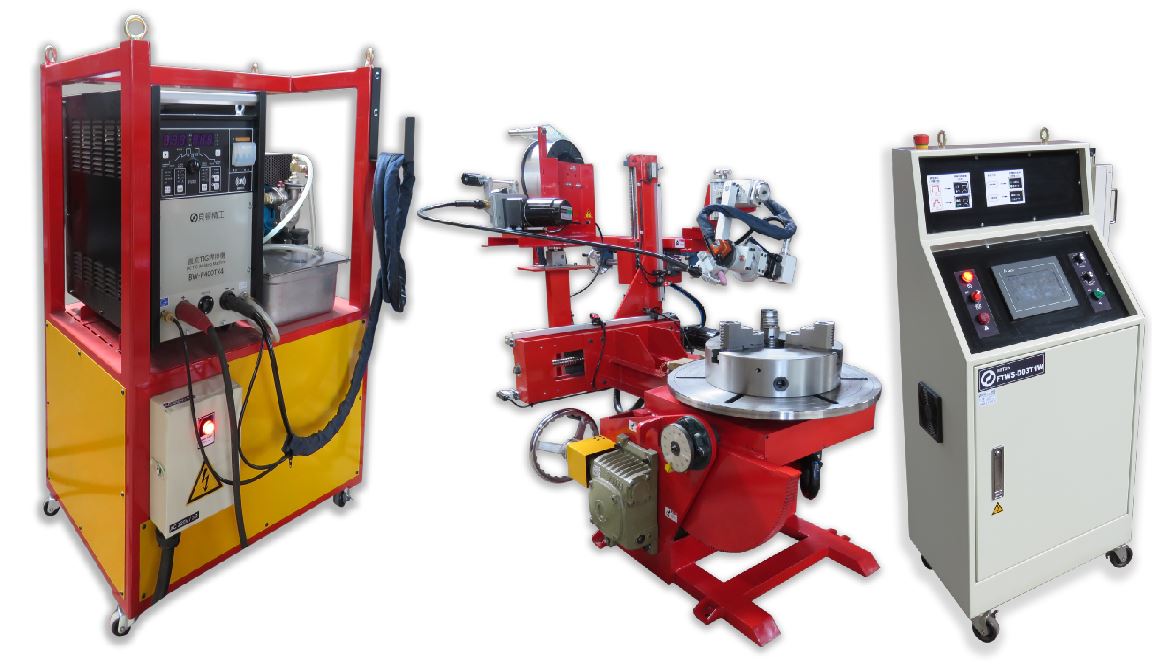

FTWS-D03T1W TIG Filler Round Welding Station

[FTWS-D03T1W.jpg]

1.) Weldable diameter: 25 mm ~ 300 mm
2.) Max weldable height: 180 mm(start from plate)
3.) Plate rotating mechanism: Servo motor drive
4.) Plate fliping mechanism: Manual adjustment (with speed reducer)
5.) Welding-torch moving mechanism(X-axis/Y-axis): DC motor drive
6.) Welding-torch moving mechanism(Z-axis): Manual adjustment
7.) Main welding function: Round welding, multi-section spot welding, multi-section jump welding
8.) Equipping with torch swing function, welding-arc check function
9.) Control system adopts PLC system and HMI with touchable screen
10.) This is the customized case of "integrating positioner, welding-torch adjustment, welding machine in one controller"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[TEA-1520SM.jpg]

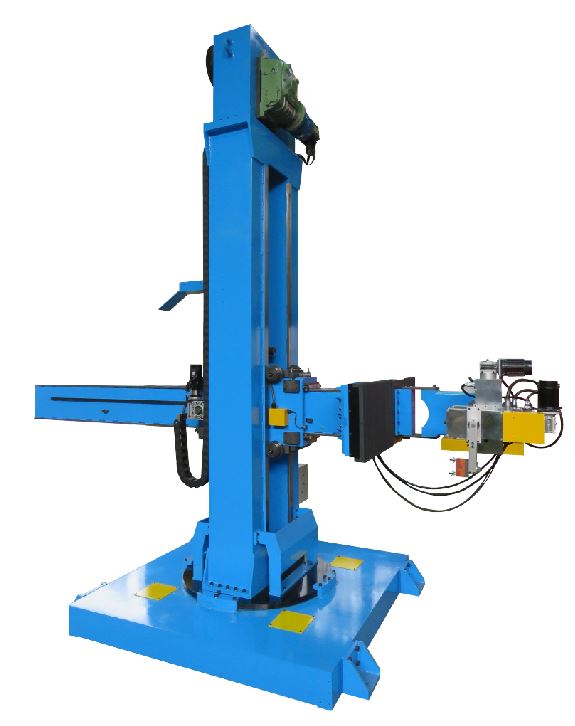

TEA-1520SM Overlay Welding Manipulator

[TEA-1520SM.jpg]

1.) Max load: 120 kg
2.) Max forwarding travel: 2,000 mm
3.) Max lifting travel: 1,500 mm
4.) Max side-moving travel: 600 mm
5.) Main structure moving mechanism: Servo motor drive
6.) Welding-torch adjustable travel(X-axis/Y-axis/A-axis): 150 mm / 150 mm / 60º
7.) Welding-torch adjustment moving mechanism: DC motor drive(X-axis/Y-axis) / Servo motor drive(A-axis)
8.) Main welding function: plane stack welding, circumferential stack welding, spiral stack welding
9.) Equipping with torch swing function
10.) Control system adopts PLC system and HMI with touchable screen
11.) Reserved contact points for roller, customer's roller can be directly controlled by manipulaor.
12.) This is the customized case of "Manipulator with high load, long travel, side-moving mechanism"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[ETROW10T-4433P1D23.jpg]

ETROW10T-4433P1D23 Endless Torch Rotating Overlay Welding System

[ETROW10T-4433P1D23.jpg]

1.) Max forwarding travel: 4,000 mm
2.) Max lifting travel(Main structure): 4,000 mm
3.) Max side-moving travel: 3,000 mm
4.) Max lifting travel(Secondary structure): 3,000 mm
5.) Main welding function: (Workpiece rotation) inner-circle stack welding, outer-circle stack welding / (Torch rotation) inner-circle stack welding, outer-circle stack welding
6.) Max stack height: 2,000 mm (not thickness of weld beam)
7.) All 6 axes are driven by servo motors, providing high-precision motion control
8.) Welding-torch rotation mechanism can rotate 360º infinitely, without considering cable entanglement
9.) Control system adopts PLC system and HMI with touchable screen
10.) Equipping with hot wire feeder, increasing welding speed
11.) This is the customized case of "Manipulator for stack welding on huge workpiece"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[VOL-D25L30.jpg]

VOL-D25L30 Lifting Seamer

[VOL-D25L30.jpg]

1.) Max weldable length: 2,560 mm
2.) Weldable diameter: 350 mm ~ 2,500 mm
3.) Weldable thickness: 1.2 mm ~ 12.0 mm
4.) Main welding function: flat linear welding, cylinder linear welding, welding-arc height control
5.) Main structure can be lifted by motor, worker can adjust height according to the size of workpiece, avoiding deformation of workpiece
6.) Control system adopts PLC system and HMI with touchable screen
7.) This case also have a OLV-2TD26 roller cart, making workpieces moving easier
8.) Roller max load: 2,000 kg
9.) Roller rotation speed: 48 ~ 480 mm/min
10.) Roller lifting travel: 350 mm
11.) Cart moving speed: 360 ~ 3,600 mm/min
12.) This is the customized case of "Linear seamer for huge workpiece"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[LRW-D6L2T1.jpg]

LRW-D6L2T1 Roller Servo Control Welding System

[LRW-D6L2T1.jpg]

1.) Weldable diameter: 200 mm ~ 630 mm
2.) Max weldable length: 2,000 mm
3.) Max roller load: 1,000 kg
4.) Main welding function: Linear welding, Round welding, Multi-process welding
5.) Equipping with advanced functions: dual-axes torch swing function, torch-angle auto positioning function, torch height control&hold function, welding initial point auto-location function
6.) Three-axes main structure mechanism: servo motor drive
7.) Dual-axes welding torch swing mechanism: step motor drive
8.) Welding torch rotation mechanism: step motor drive
9.) Control system adopts PLC system and HMI with touchable screen
10.) This is the customized case of "Welding workstation accroding to customer's workpiece size and the welding procedure customer requests"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[3L2R.jpg]

3L2R Coordinate Axis Servo Control Welding System

[3L2R.jpg]

1.) Max forwarding travel: 1,000 mm
2.) Max lifting travel: 1,000 mm
3.) Max side-moving travel: 1,000 mm
4.) Platform size: L:500 mm * W:500 mm
5.) Main welding function: Point-to-point linear welding, Multi-line combined welding
6.) Three-dimensional point-to-point linear path calculation
7.) All 3+1 axes are driven by servo motors, providing high-precision motion control
8.) Control system adopts PLC system and HMI with touchable screen
9.) This is the customized case of "Performance is similar to robot but with easy-to-use user interface"

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
[CSR-30T.jpg]

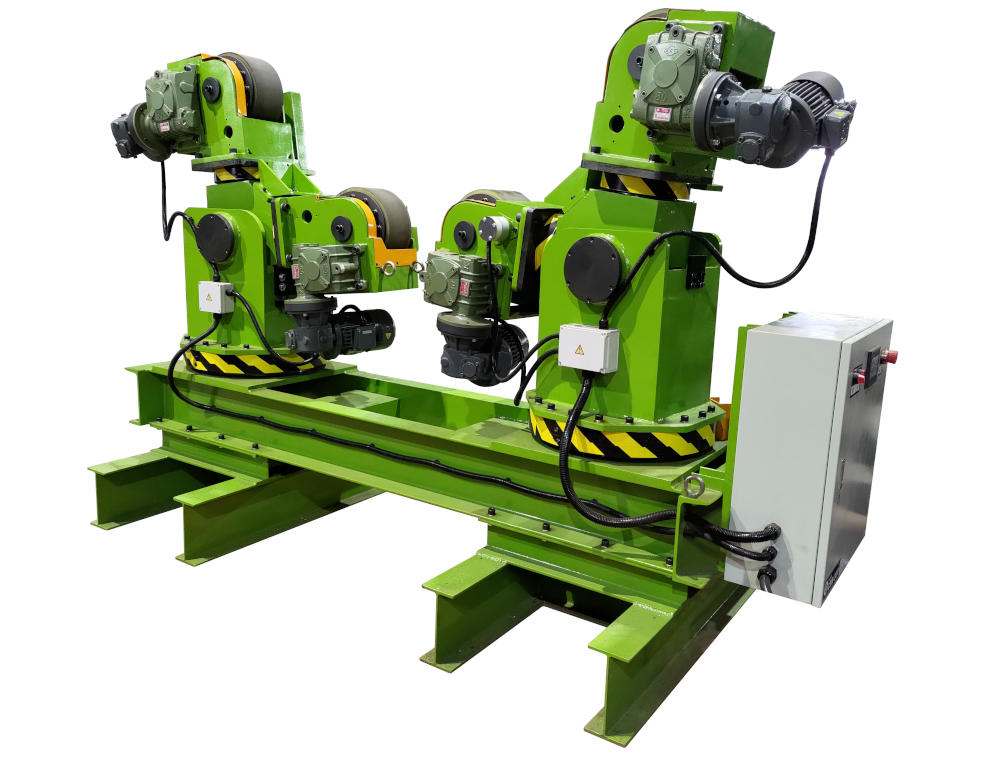

CSR-30T Special-Shaped Workpiece Welding Roller

[CSR-30T.jpg]

1.) Max Load: 30,000 Kgs
2.) Roller Material: PU
3.) Control System: PLC + HMI
4.) Controller Function: Manual Mode, Robotic Connection Mode
5.) Connection Protocol: Ethernet

● This is customized equipment. Specifications are for reference only.

● 100% Design & Made in Taiwan
