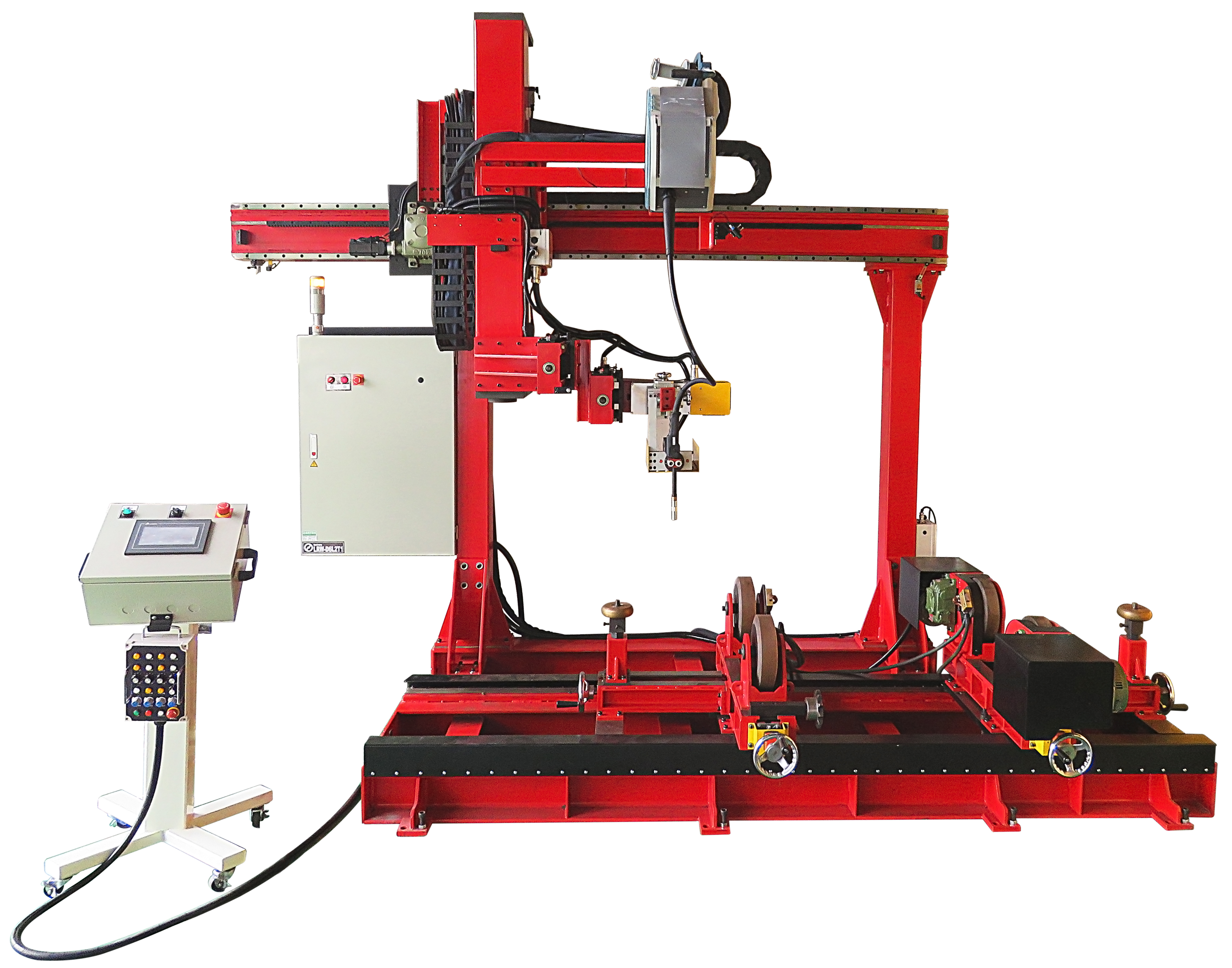

LRW Roller Servo Control Welding System

1.) The system can design roller, each axis stroke and welding gun movement angle according to the needs of the workpiece
2.) The system is suitable for welding a large number of workpieces, simplify professional control training for operators
3.) The roller is double-sided transmission, the rotation speed: 120 ~ 1,200 mm / min, the roller can be designed according to the diameter of the workpiece
4.) Horizontal X-axis moving speed: 25 ~ 2,500 mm / min, the stroke can be designed and made as required
5.) Vertical Y-axis moving speed: 10 ~ 1,000 mm / min, the stroke can be designed and made as required
6.) Z-axis moving speed: 10 ~ 1,000 mm / min, the stroke can be designed and made as required
7.) Horizontal X-axis oscillating stroke: 100 mm, oscillating speed: 60 ~ 6,000 mm / min
8.) Z-axis oscillating stroke: 150mm, oscillating speed: 60 ~ 6,000 mm / min
9.) The left and right rotation angle of the welding torch: ± 90 degrees, oscillating speed: 1.2º ~ 120.0º / sec

Design and manufacture exclusive machines and control systems according to workpiece requirements.
