Customized Machinery (For Exhaust Pipe)

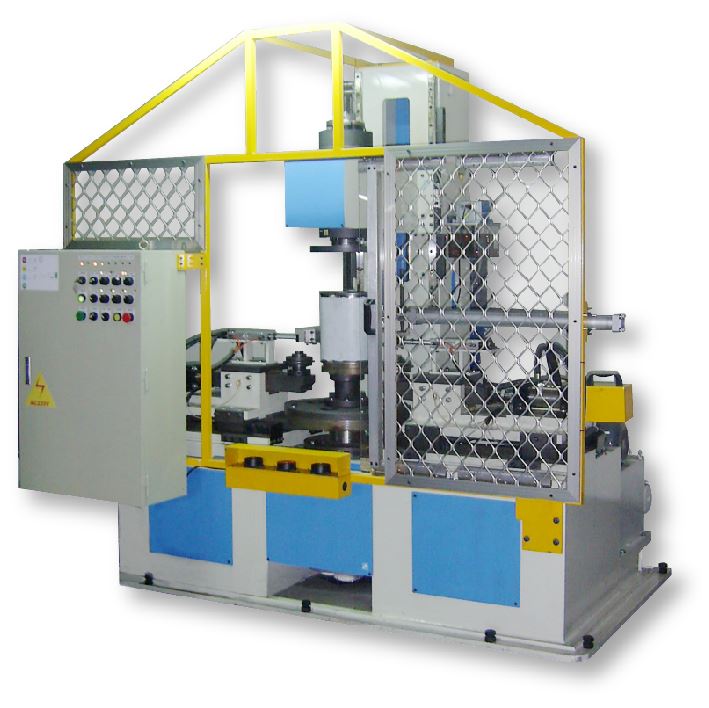

	R1CH55 Curling Edge Machine 1.) Range of base diameter: 100 mm ~ 300 mm 2.) Restriction of shape: Convex continuous shape + Column shape 3.) Range of height: 100 mm ~ 550 mm 4.) Curl roller/Pressure roller movement method: Track mold 5.) Curl roller/Pressure roller Stroke: 50 mm 6.) Workpiece rotation speed: 20 ~ 60 rpm 7.) Hydraulic cylinder output: 50 ~ 70 kg / cm2 8.) The mold-based design allows operators to quickly switch production projects simply by changing molds. 9.) This machine is designed and manufactured for a project commissioned by a well-known exhaust pipe manufacturer in Taiwan. ● Fully customized machine. Specs are for reference only. ● 100% Designed/Made in TAIWAN
	R2CH70 Curling Edge Machine 1.) Range of base diameter: 100 mm ~ 300 mm 2.) Restriction of shape: Convex continuous shape + Column shape 3.) Range of height: 100 mm ~ 700 mm 4.) Curl roller/Pressure roller movement method: Track mold 5.) Curl roller/Pressure roller Stroke: 50 mm 6.) Workpiece rotation speed: 20 ~ 60 rpm 7.) Hydraulic cylinder output: 50 ~ 70 kg / cm2 8.) The mold-based design allows operators to quickly switch production projects simply by changing molds. 9.) This machine is designed and manufactured for a project commissioned by a well-known exhaust pipe manufacturer in Taiwan. ● Fully customized machine. Specs are for reference only. ● 100% Designed/Made in TAIWAN

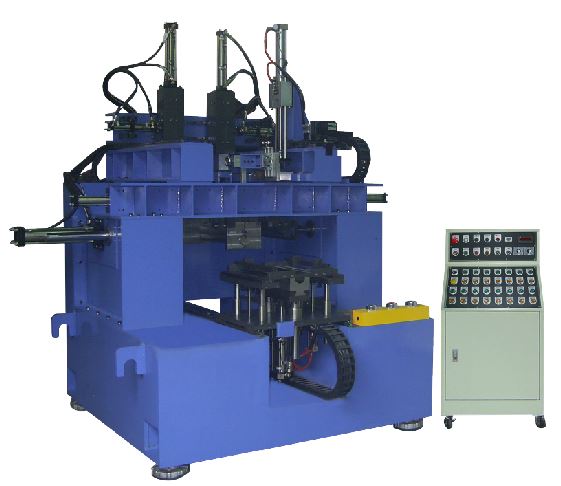

	PGW-4P1T Tube Forming Welding Machine 1.) Range of base diameter: 100 mm ~ 300 mm 2.) Restriction of shape: Convex continuous shape + Column shape 3.) Range of height: 100 mm ~ 400 mm 4.) Workpiece molding method: Hydraulic pressurization + Forming mold 5.) Hydraulic cylinder stroke(side/bottom): 250 mm / 200 mm 6.) Torch movement speed: 0 ~ 2000 mm / min 7.) Hydraulic cylinder output: 50 ~ 70 kg / cm2 8.) The mold-based design allows operators to quickly switch production projects simply by changing molds. 9.) This machine is designed and manufactured for a project commissioned by a well-known exhaust pipe manufacturer in Taiwan. ● Fully customized machine. Specs are for reference only. ● 100% Designed/Made in TAIWAN
	SY2P-D24H45 Glass Yarn Filling Machine 1.) Range of base diameter: 100 mm ~ 240 mm 2.) Range of height: 50 mm ~ 450 mm 3.) Stroke of yarn-spraying gun: 450 mm 4.) Number of yarn-spraying gun: 2 set / 2 yarn output per set 5.) Range of spraying speed: 600 ~ 2000 mm / s 6.) The yarn-spraying mechanism has yarn retraction function 7.) Stroke of cover-sealing hydraulic cylinder: 450 mm 8.) Max pressure of cover-sealing: 120 kg 9.) Workpiece rotation speed: 0 ~ 120 rpm 10.) Equipped with a transparent protective plate to prevent glass yarn from splashing out during operation and causing injury to the operators. 11.) The mold-based design allows operators to quickly switch production projects simply by changing molds. 12.) The control system is made of Delta PLC and HMI, which can save/load working parameters according to the type of workpiece, allowing operators to quickly switch production projects. 13.) This machine is designed and manufactured for a project commissioned by a well-known exhaust pipe manufacturer in Taiwan. ● Fully customized machine. Specs are for reference only. ● 100% Designed/Made in TAIWAN
