R1CH55 Curling Edge Machine

  Previous

Catalogue               Instruction               Youtube

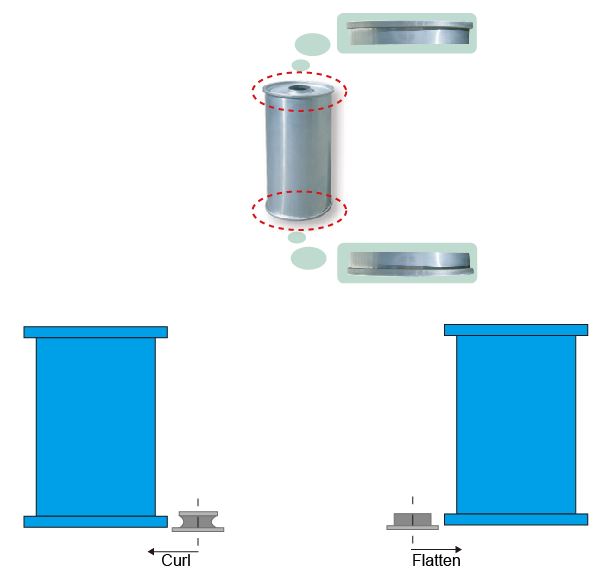

1.)The mechanism is to curl and flatten the lid on one side.

2.)Workpiece Max. Dia : 300mm

3.)Workpiece Max. Height  : 550mm

4.)Workpiece rotation speed : 20 - 60RPM

5.)Roller Moves : Cam Track

6.)Hydraulic Drive Motor : AC3.7Kw

7.)Hydraulic Output Pressure : 50 - 70Kg/cm2

8.)Hydraulic Tank : 80L
