WCD-01 Weld Pool Monitoring System

1.) Camera Category: Infrared Camera (For welding)
2.) Camera Resolution: 1280*1024 / 60 fps
3.) Imaging Type: Grayscale (Black & White)
4.) Focusable Distance: 160 mm ~ 250 mm
5.) Applicable Welding Method: MMA / MAG / MIG / TIG / PAW
6.) Cooling Solution: Passive Air-Cooling / Forced Water-Cooling (Optional)
7.) Camera Fixtures: 11" Flexible Clamp Arm
8.) Monitor Spec.: 15" LCD Screen / 1280*1024 / with Stand

You can find us on:

WCD-01 Weld Pool Camera: Demonstration

Welding parameters in the demo: TIG / 150A / Table speed 1.2 rpm

WCD-01 Demo Setting

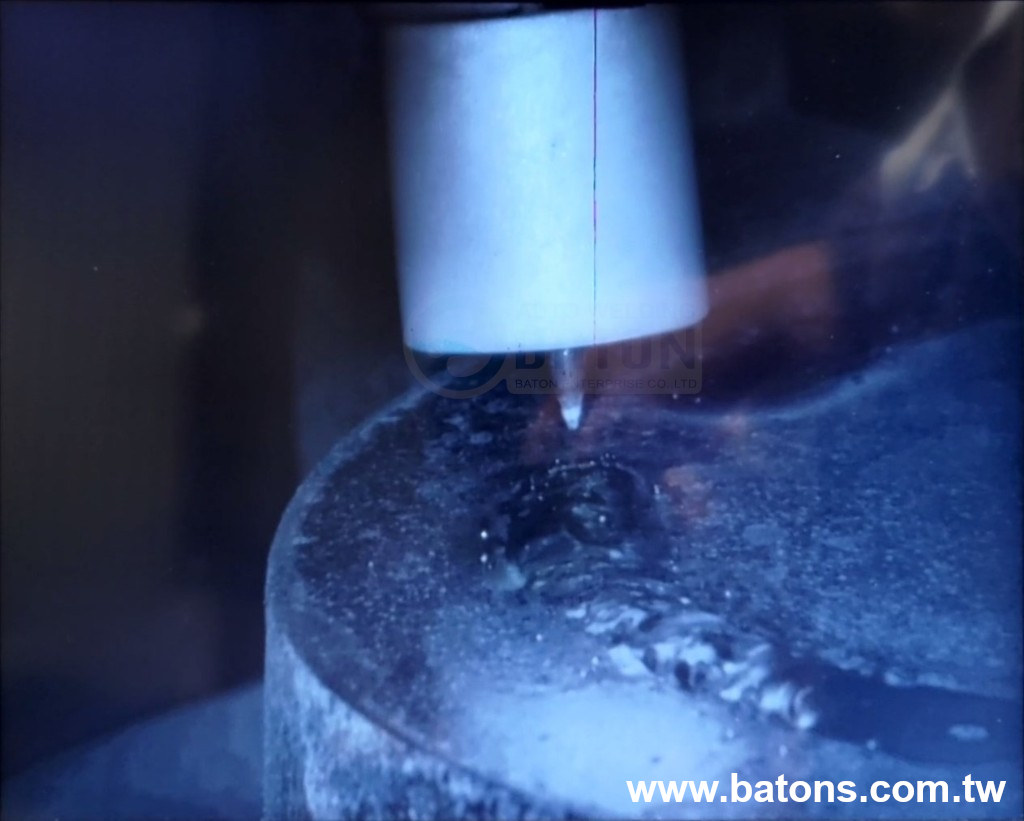

Screen display when not welding (shot from actual screen)

WCD-01 Non-welding Screen

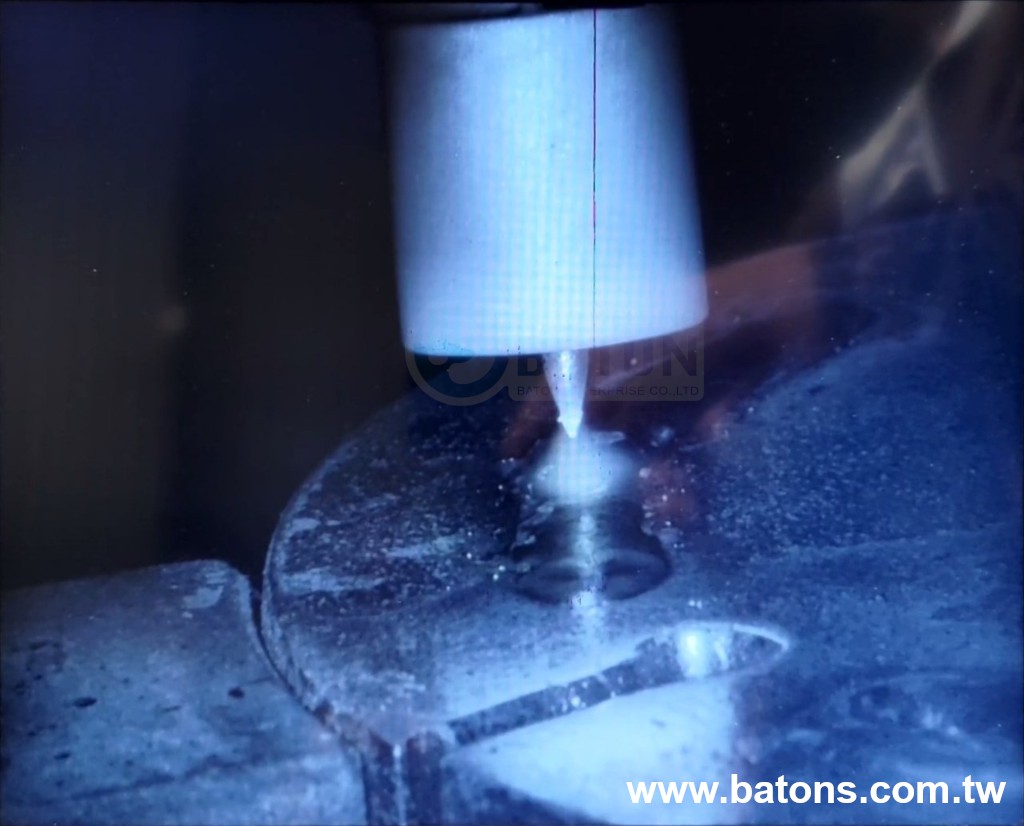

Screen display when welding (shot from actual screen)

WCD-01 Welding Screen
