ETROW10T-4433P1D23 Endless Torch Rotating Overlay Welding System

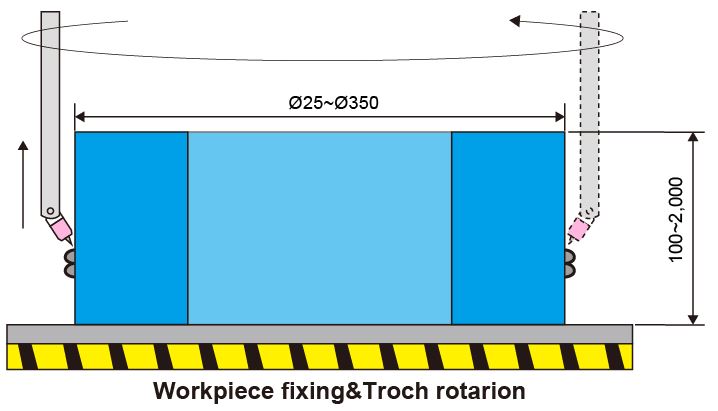

1.) Overlay welding outer diameter(Torch rotation): 25 ~ 350 mm / Height: 2,000 mm

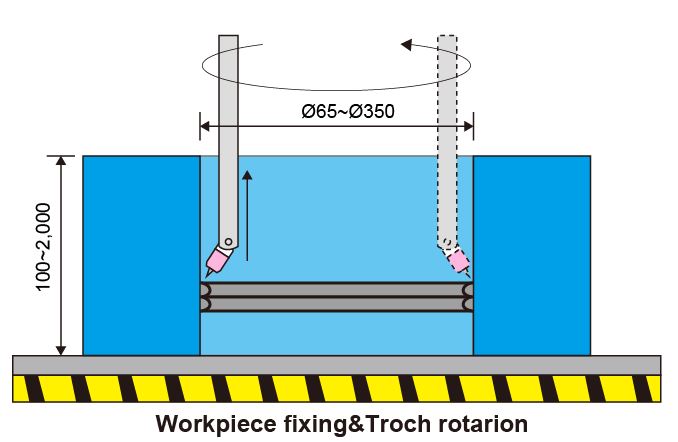

2.) Overlay welding inner diameter(Torch rotation): 65 ~ 350 mm / Depth: 2,000 mm

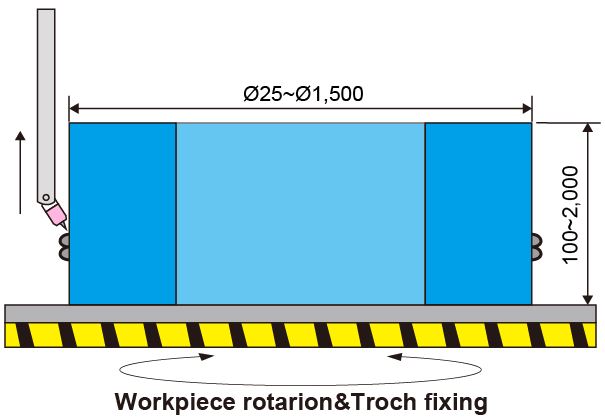

3.) Overlay welding outer diameter(Workpiece rotation): 25 ~ 1,500 mm / Height: 2,000 mm

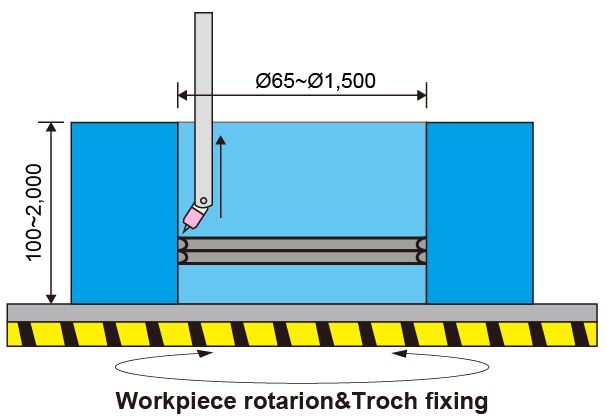

4.) Overlay welding inner diameter(Workpiece rotation): 65 ~ 1,500 mm / Depth: 2,000 mm
5.) Equipped with endless torch rotating device(Include wire feeder, torch cable, control cable and water cooling circulation line)
6.) Specially designed TIG welding torch, length: 2.4 M
7.) Control functions include setting the distance between the welding torch and the workpiece
8.) Control functions include AVC(arc voltage control), keep the distance between welding torch and workpiece according to arc voltage during welding
9.) When the welding torch is operated for rotary welding, the center position of the welding torch rotation is automatically found
10.) Equipped with hot wire feeder, wire diameter: 0.9 ~ 1.6 mm
11.) Using Delta PLC controller and HMI display, can store multiple sets of welding parameters
