SRL-D12L04 Hydraulic flattening machine

  Previous

 Catalogue              Instruction

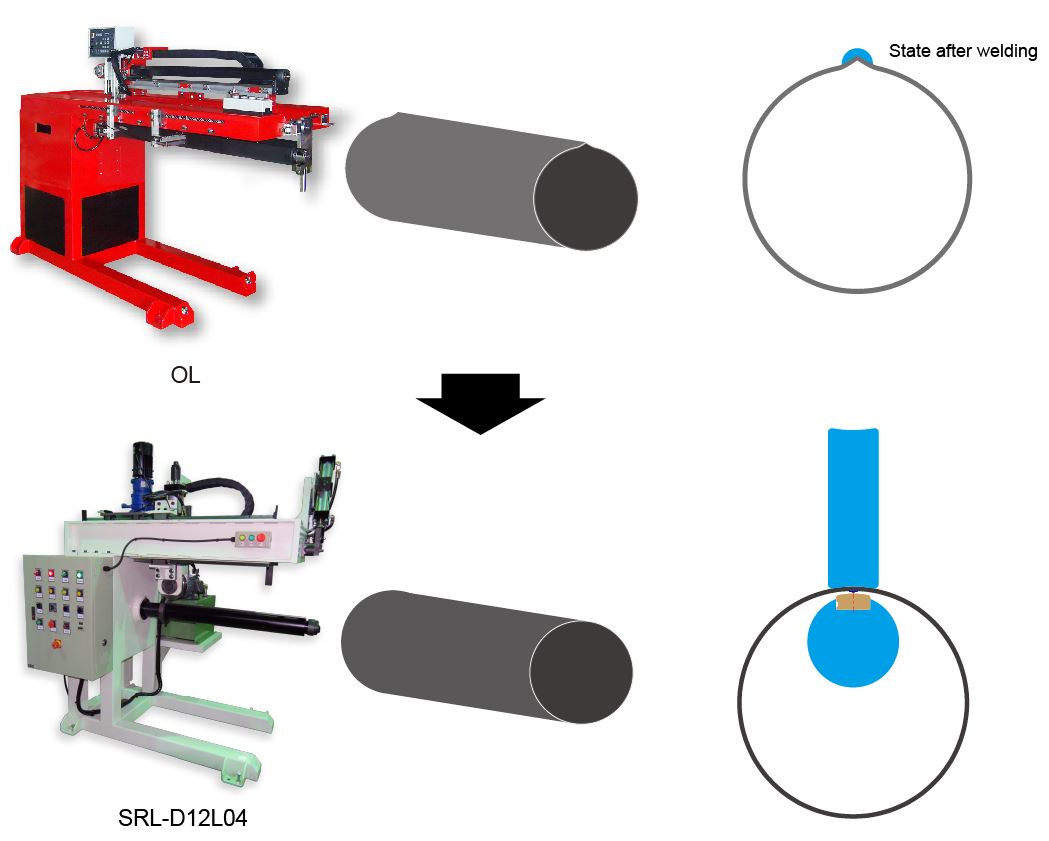

1.)This machine is used to flatten the weld bead after the straight seam welding is completed.

2.)Workpiece Dia : 120 - 800mm

3.)Workpiece Length  : 0 - 400mm

4.)Workpiece Thickness  : 0 - 3.6mm

5.)Roller movement speed : 440 - 4,400 mm/min

6.)Hydraulic Drive Motor : AC2HP

7.)Hydraulic Output Pressure : 20 - 50Kg/cm2

8.)Hydraulic Tank : 80L
