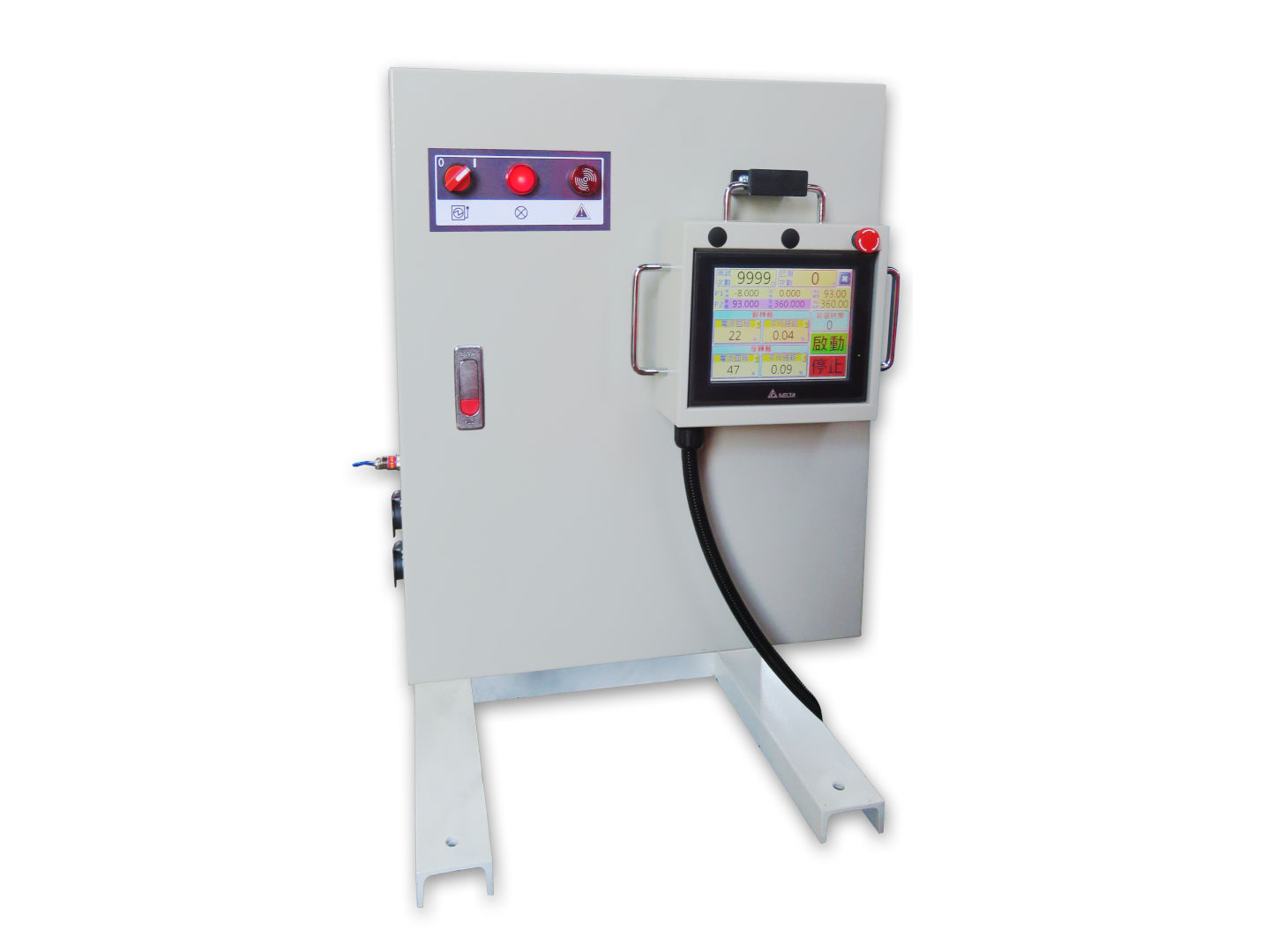

RSC2S-P Series Dual-Axis Servo Controller

• This series has 4 standard specifications:
RSC2S-04P: For use with RSP-300AN
RSC2S-07P: For use with RSP-500AN
RSC2S-10P: For use with RSP-750AN
RSC2S-15P: For use with RSP-1TAN
• Servo Motor Spec.: (View catalog for details)
• Brand of Servo Motor and Servo Driver: Delta Electronics
• Communication Protocol: I/O Interface
• Functions in I/O mode:

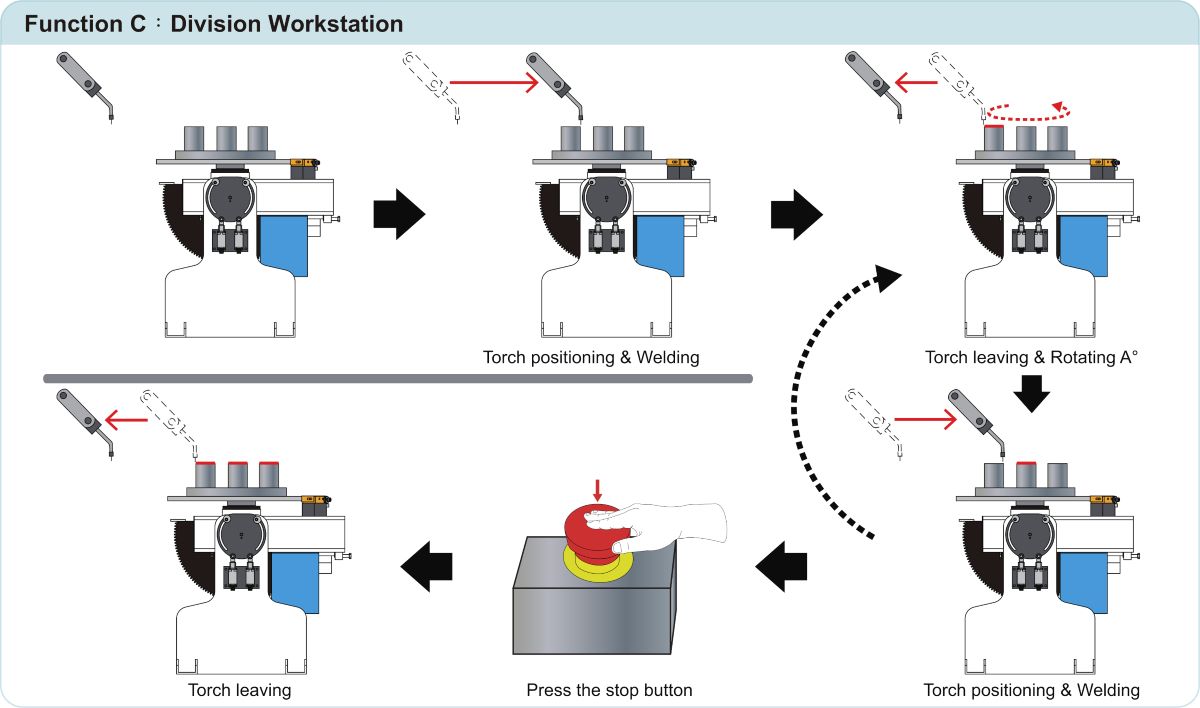

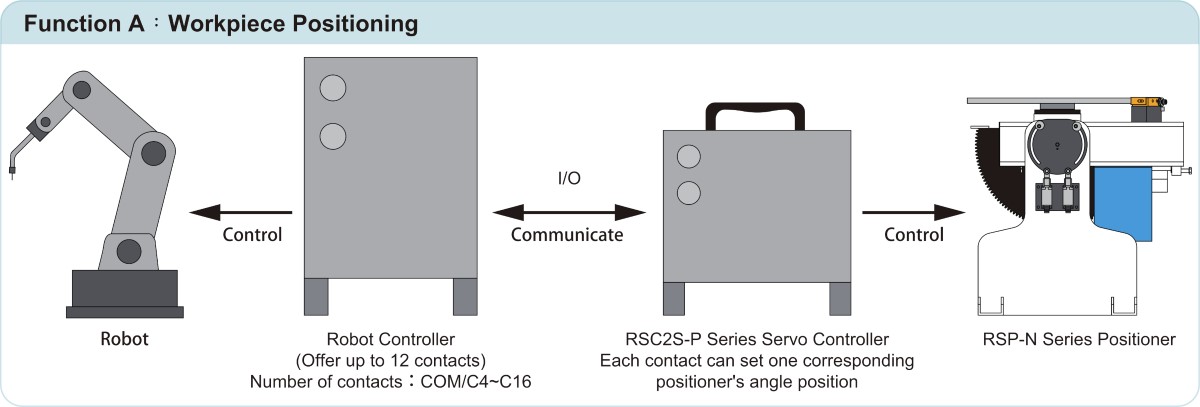

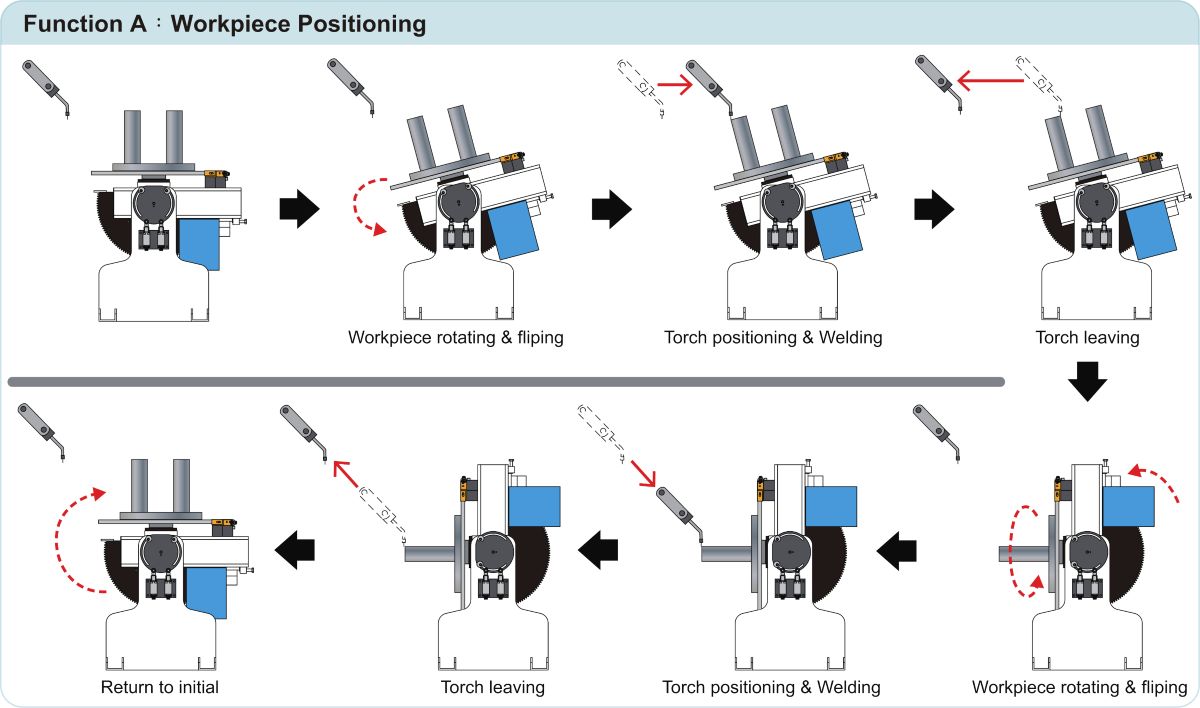

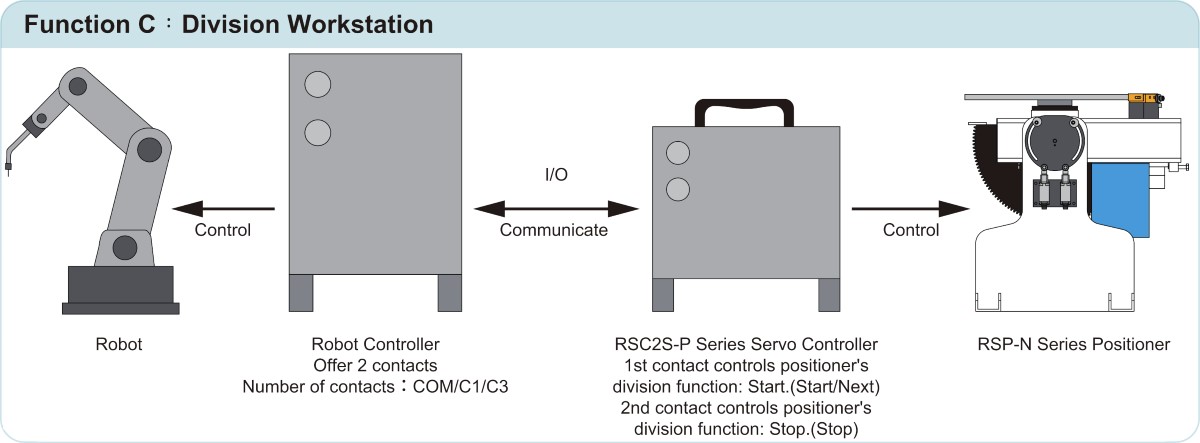

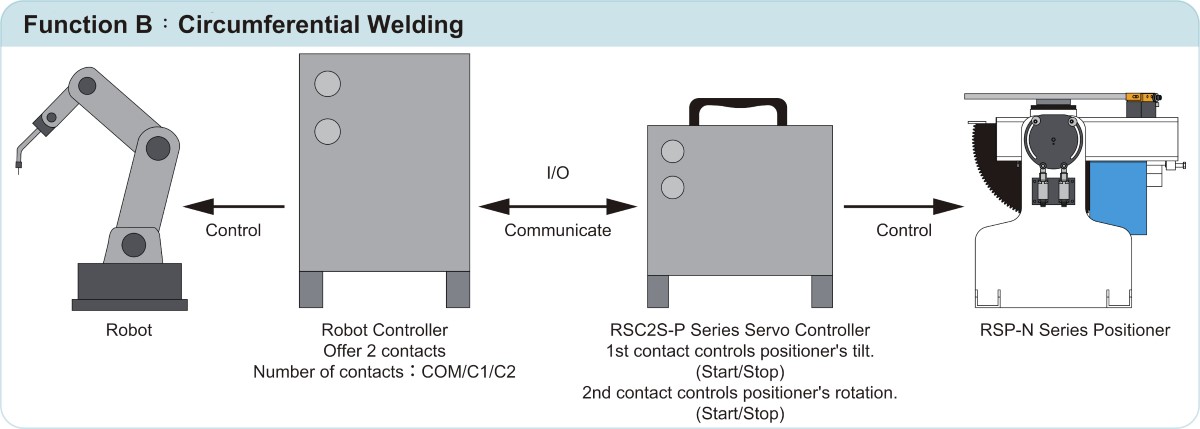

Workpiece Positioning, Circumferential Welding, Division Workstation

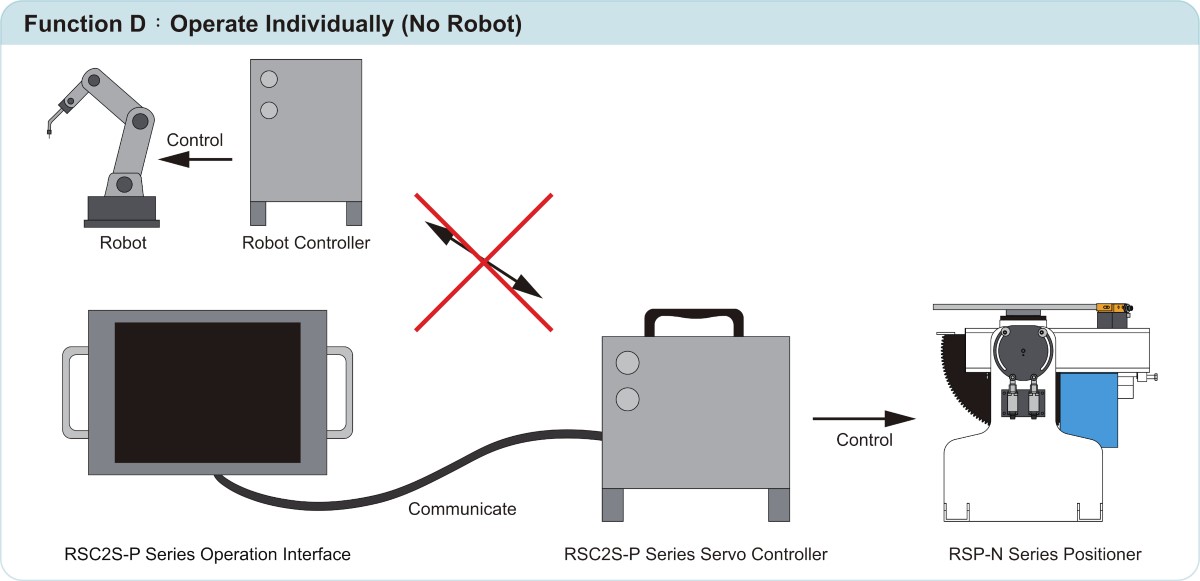

• Functions in controller mode:
Rotation inch, Tilt inch, Position point setting, Position point parameter setting
• Need to confirm in advance if the robot system has I/O interface and supports I/O interface control.
• Does not include "RSP-N Series Dual-Axis Servo Positioner". Positioner needs to be purchased separately.
