EVPOS-300MCA Positioner

  Previous

 Catalogue              Instruction

1.)Max Load : 300Kgs.

2.)Table Speed : 0.34 - 3.4RPM.

3.)Table Diameter : 400mm.

4.)Spindle thru hole : 58mm.

5.)Can connect a welding power source.

6.)Can change the table speed according to the demand.

7.)Overlap timer adjusts : 0 - 99.9sec.

8.)Start / Crater arc timer : 0 - 99.9sec.

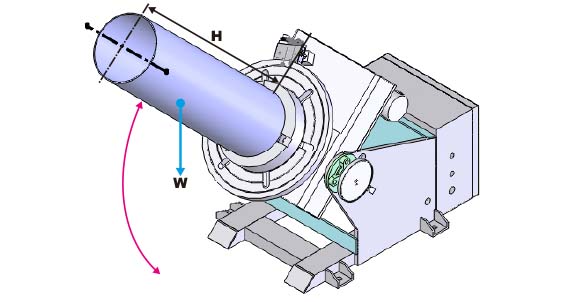

9.)Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 1,650(kgs.cm)

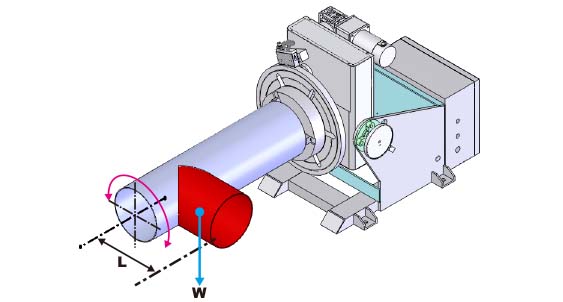

10.)When table and ground are vertical,W(kgs) * L/2(cm.) = 360(kgs.cm)

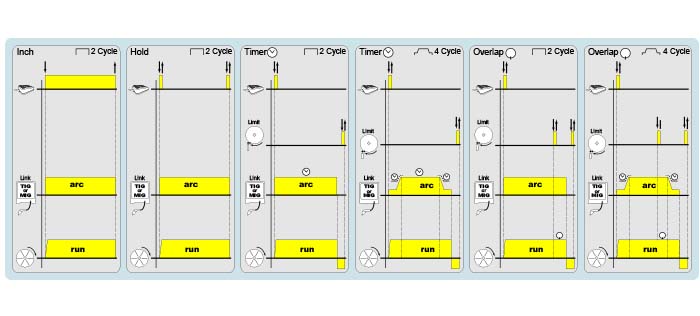

 11.)Control the function
