TPM-365 Tube Positioner

  Previous

 Catalogue              Instruction

1.)Max Load : 300Kgs.

2.)Table Speed :0.2 - 2.0RPM.

3.)Tube Diameter : 150 - 360mm.

4.)Tube length : 200mm or more.

5.)Spindle thru hole : 3658mm.

6.)Workpiece (Flange) Diameter : 150 - 620mm.

7.)Can connect a welding power source.

8.)Can change the table speed according to the demand.

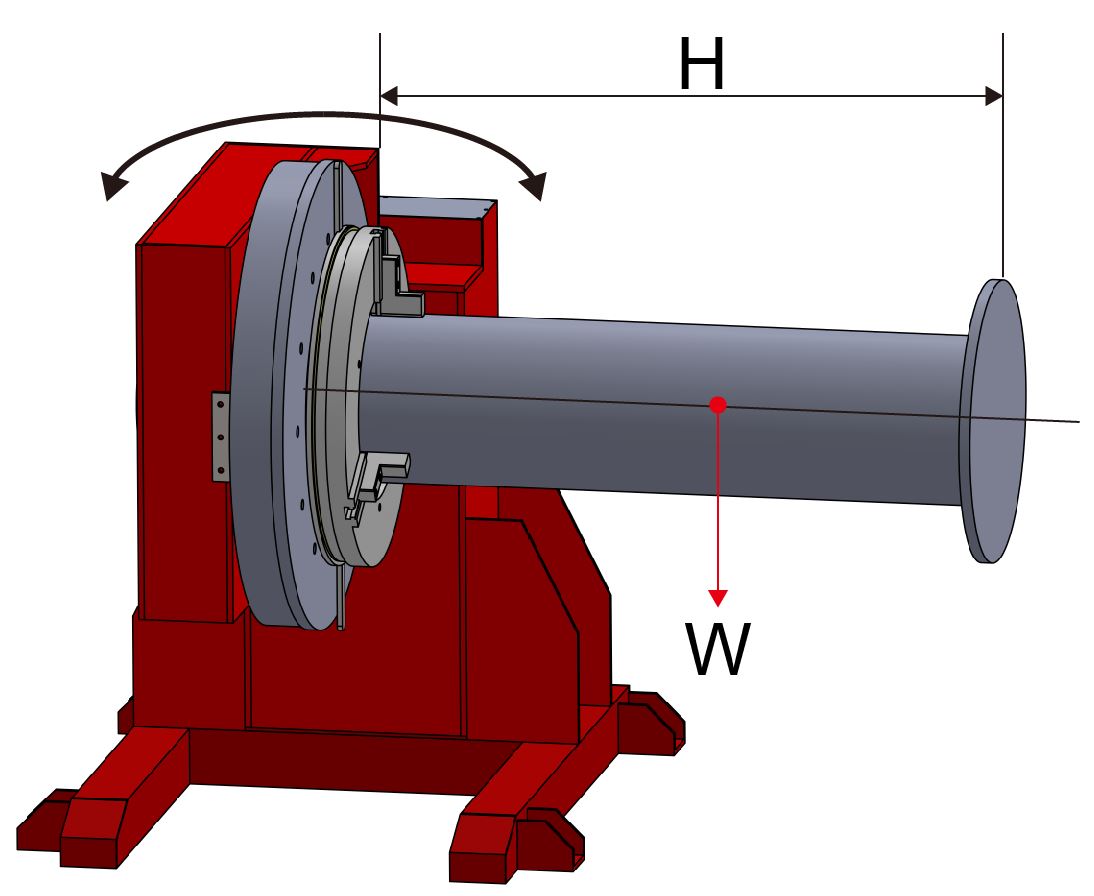

9.) Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 15,000(kgs.cm)

10.)When table and ground are vertical,W(kgs) * L/2(cm.) = 2,000(kgs.cm)

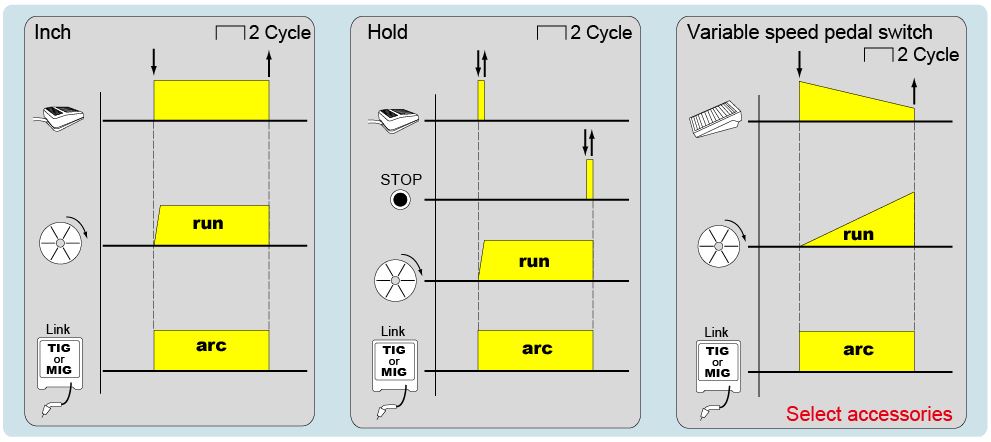

 11.)Control the function
