TVP-160MC18 Positioner (Overlap Type)

  Previous

 Catalogue              Instruction

1.)Max Load : 200Kgs.

2.)Table Speed : 0.6 - 6.0RPM.

3.)Table Diameter : 450mm.

4.)Spindle thru hole : 58mm.

5.)Can connect a welding power source.

6.)Can change the table speed according to the demand.

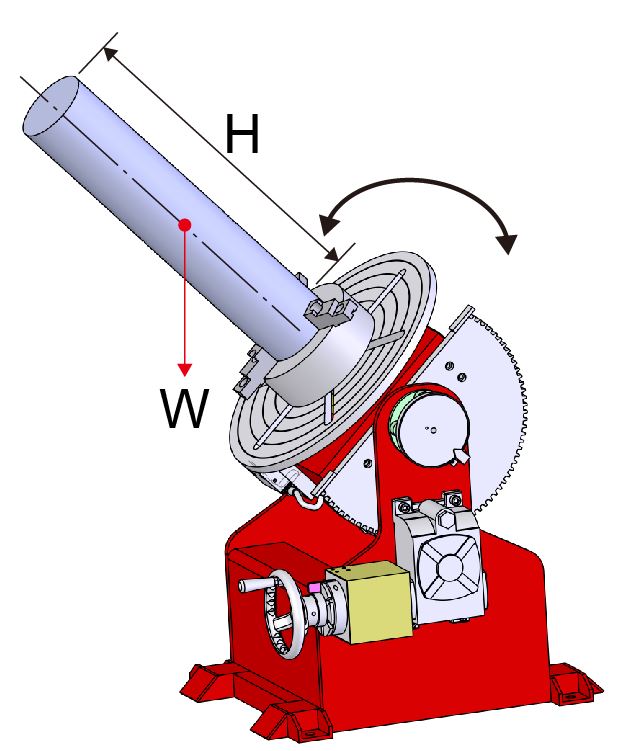

7.)Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 2,000(kgs.cm)

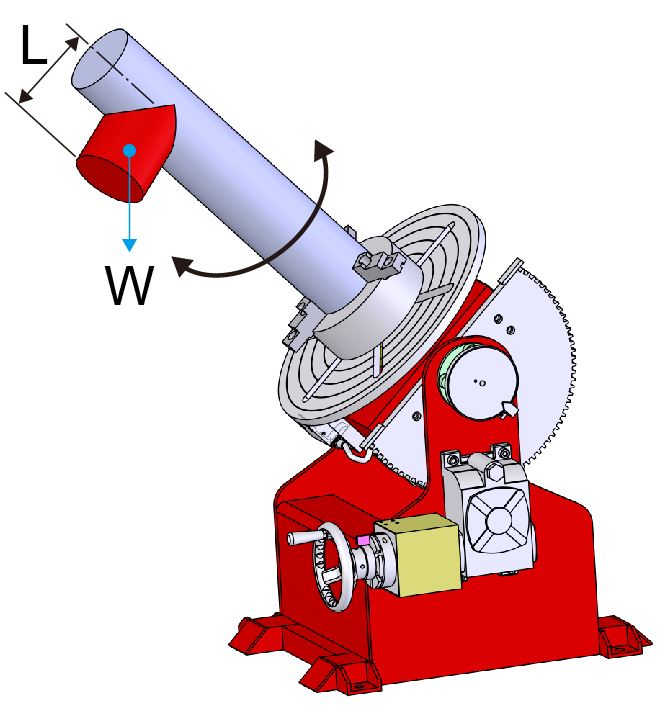

8.)When table and ground are vertical,W(kgs) * L/2(cm.) = 400(kgs.cm)

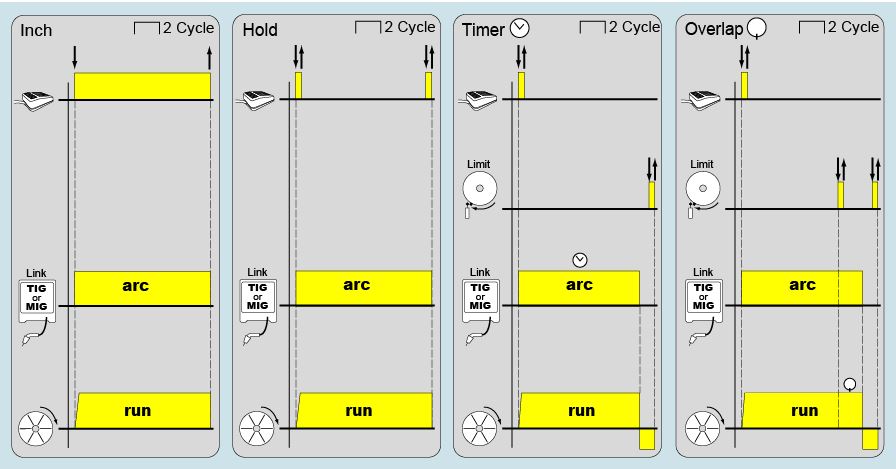

 9.)Control the function
