WCD-02 Welding Position Monitoring System

1.) Camera Category: Special Camera (For welding)
2.) Camera Resolution: Max 1280*1024 / 60 fps
3.) Imaging Type: Color / Grayscale
4.) Focal Length: 5 mm ~ 50 mm (Replaceable)
5.) Min. Focusable Distance: 250 mm
6.) Applicable Welding Method: MAG / MIG / TIG / SAW
7.) Cooling Solution: Passive Air-Cooling / Forced Water-Cooling (Optional)
8.) Camera Fixtures: 11" Flexible Clamp Arm
9.) Monitor Spec.: 15" LCD Screen / 1280*1024 / with Stand

You can find us on:

WCD-02 Welding Position Camera: Demonstration

Welding parameters in the demo: TIG / 150A / Table speed 1.2 rpm

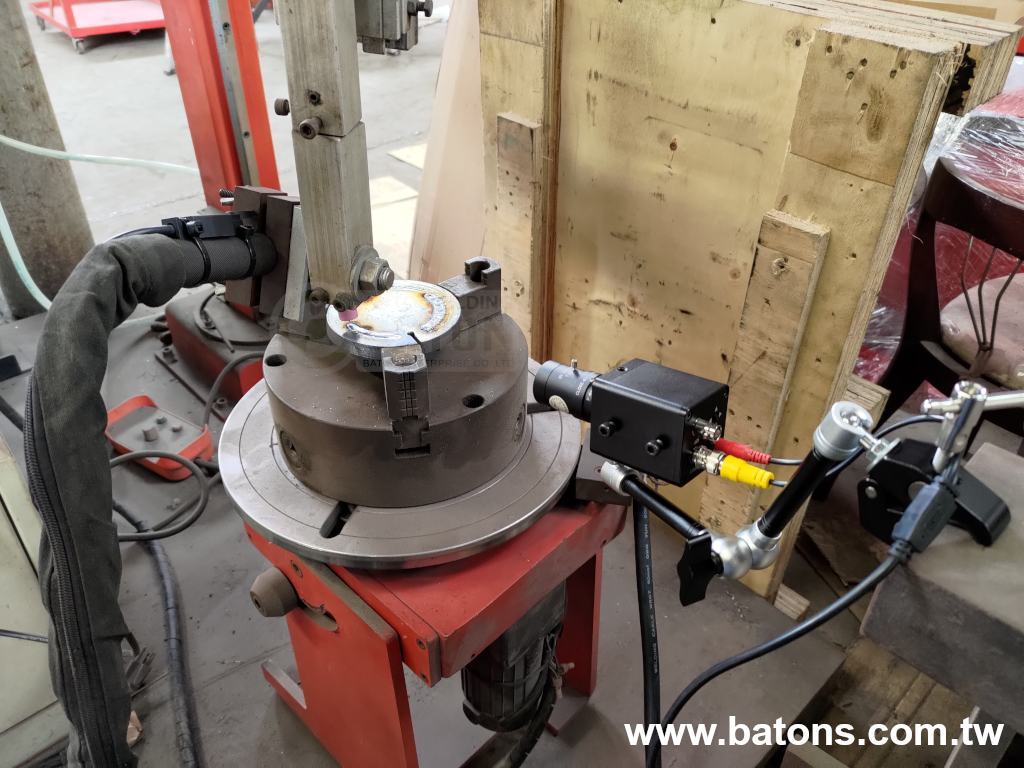

WCD-02 Demo Setting

Screen display when not welding (shot from actual screen)

WCD-02 Non-welding Screen

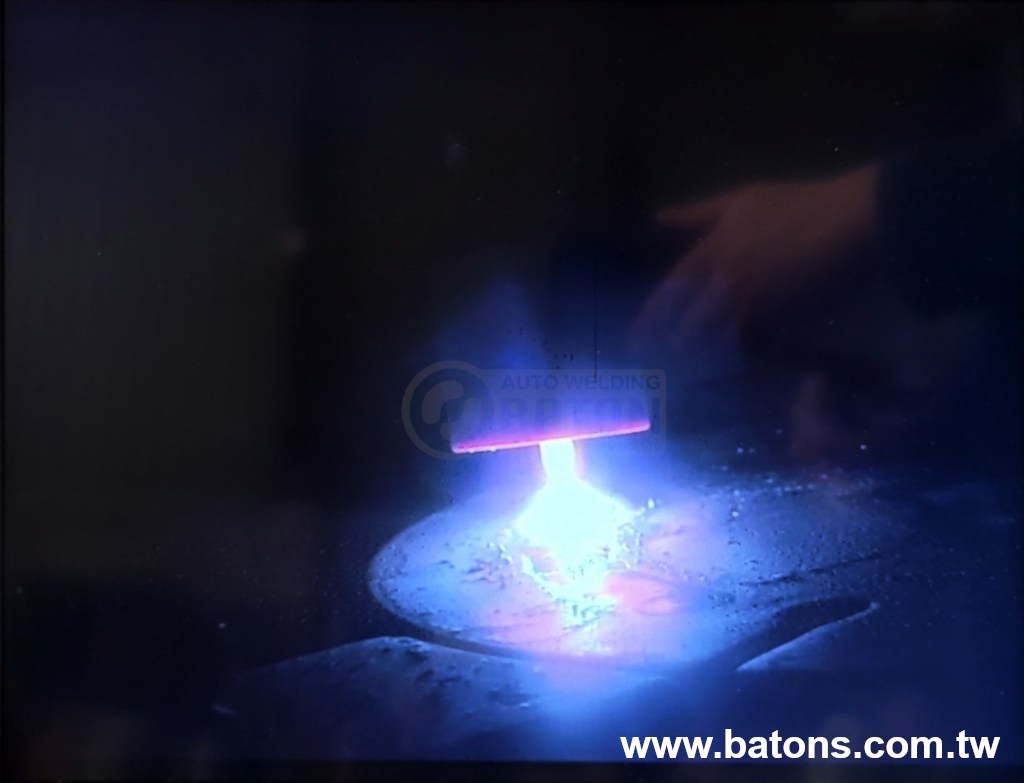

Screen display when welding (shot from actual screen)

WCD-02 Welding Screen
