TEA-4040 Manipulator

  Previous

 Catalogue              Instruction

1.)Max Load : 120Kgs.

2.)Manipulator has fixed type and rails type can choose.

3.)Boom horizontal movement stroke : 4,000mm, speed : 150 - 1,500mm/min.

4.)Boom Vertical movement stroke : 4,000mm, speed : 800mm/min.

5.)Manipulator has the crashed off device and double-row chain support.

6.)When the welding operation can adjust the position of the welding torch.

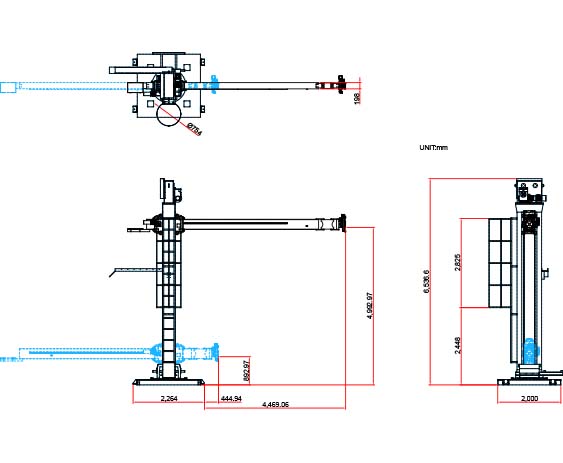

7.)Size
