POS08V Turn Table

  Previous



 Catalogue              Instruction

1.)Max Load : 80Kgs.

2.)Table low Speed : 0.2 - 2.0RPM. Table high Speed : 1.2 - 12.0RPM.

3.)Table Diameter : 300mm.

4.)Spindle thru hole : 20mm.

5.)The control panel is on machinery.

6.)After the tilt angle of table is locked,can grip the work piece.

7.)Can connect a welding power source.

8.)Timer adjusts : 0 - 60sec.

9.)Propose cooperating with welder and welding manually.

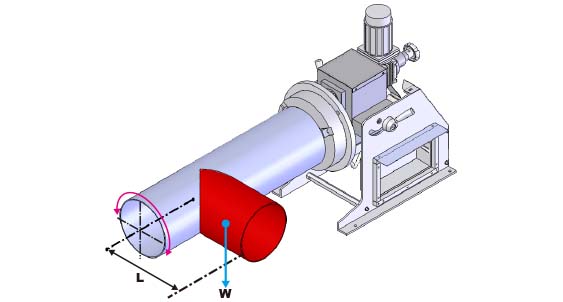

10.)When table and ground are vertical : Low speed : W(kgs) * L/2(cm.) = 250(kgs.cm),High speed : W(kgs) * L/2(cm.) = 45(kgs.cm)

11.)Control the function
