POS08CS Turn Table

1.) Max load: 80 kgs
2.) Rotation speed: 0.7 ~ 7.0 rpm
3.) Table diameter: 300 mm
4.) Main functions of the controller: Inch, Hold, Speed adjustable, CW/CCW rotation
5.) Able to connect with one welding machine, synchronizing start and stop.

You can find us on:

6.) When table and ground are vertical: W(kgs) × L(cm) ÷ 2 ≤ 90 (kgs.cm)

(Diagram)

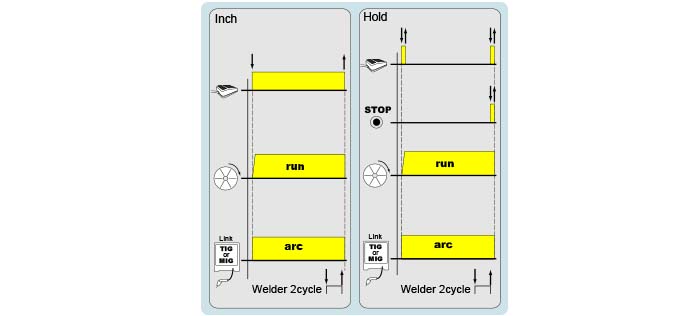

7.) Diagram of controller function

(Diagram)
