POS08C Turn Table

  Previous



 Catalogue              Instruction

1.)Max Load : 80Kgs.

2.)Table Speed : 0.7 - 7.0RPM.

3.)Table Diameter : 300mm.

4.)The control panel is on machinery.

5.)After the tilt angle of table is locked,can grip the work piece.

6.)Can connect a welding power source.

7.)Timer adjusts : 0 - 60sec.

8.)The table speed has many kinds of choices,please consult the catalogue.

9.)Propose cooperating with welder and welding manually.

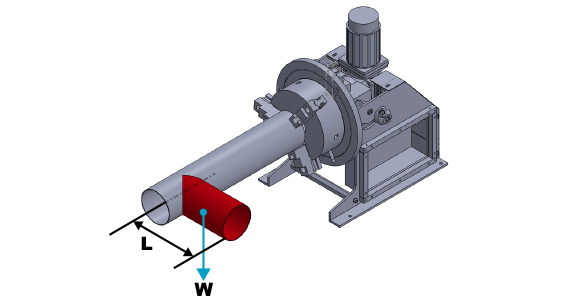

10.)When table and ground are vertical,W(kgs) * L/2(cm.) = 90(kgs.cm)

11.)Control the function
