HVP-2T-ID6 Lift Positioner

  Previous

 Catalogue               Instruction

1.)Max Load : 2,000Kgs

2.)Table Speed : 0.15 - 1.5RPM

3.)Table Diameter : 1,250mm

4.)Table hole diameter : 600mm

5.)Table tilt angle : 0 - 360 degree

6.)Table tilt speed : 2 RPM

7.)Table lifting stroke : 1,000mm

8.)Table lift speed : 1,000mm/min

9.)Can connect a welding power source.

10.)Can tilt the table after the work piece is fixed first.

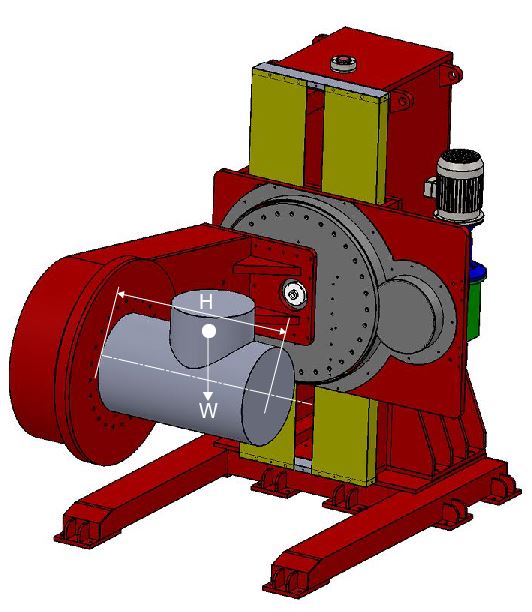

When table tilt, W(kgs) * H/2(cm.) = 30,000(kgs.cm)

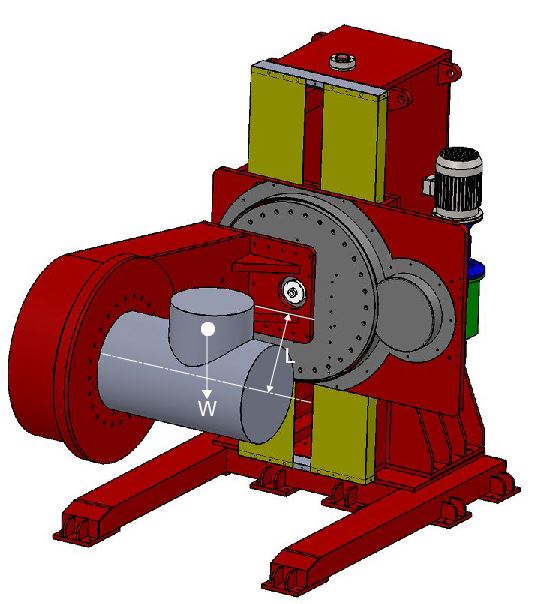

11.)When table and ground are vertical, W(kgs) * L/2(cm.) = 100,000(kgs.cm)

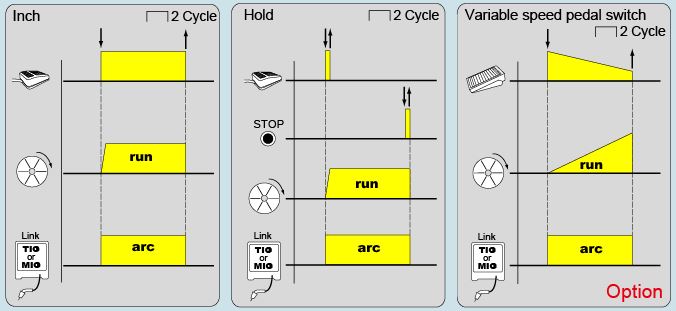

12.)Control the function
