HFP2T-L360H35 Horizontal Frame Positioner

  Previous

 Catalogue              Instruction

1.)Max Load : 2,000Kgs.

2.)Frame Tlt Speed : 0.1 - 1.0RPM.

3.)Frame size : L3,600mm * W2,000mm.

4.)Frame to center distance : 350mm.

5.)Distance between center and base : 1,400mm.

6.)Double foot switch : orward Inch / Reverse Inch

7.)Can tilt the frame after the work piece is fixed first.

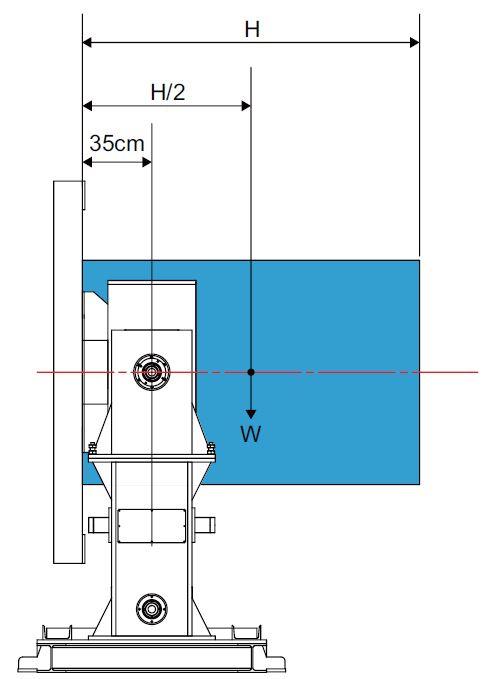

Workpiece height H : W(kgs) * W(kgs) *( H/2-35)(cm.) =42,000(kgs.cm)

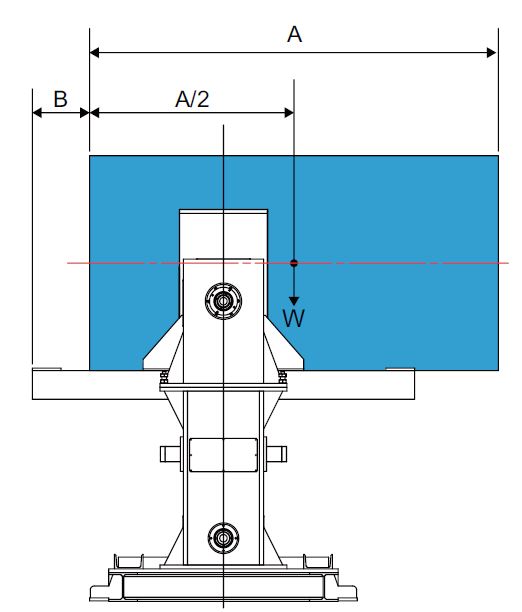

Workpiece width A : W(kgs) * (A/2-100+B)(cm.) =42,000(kgs.cm)
