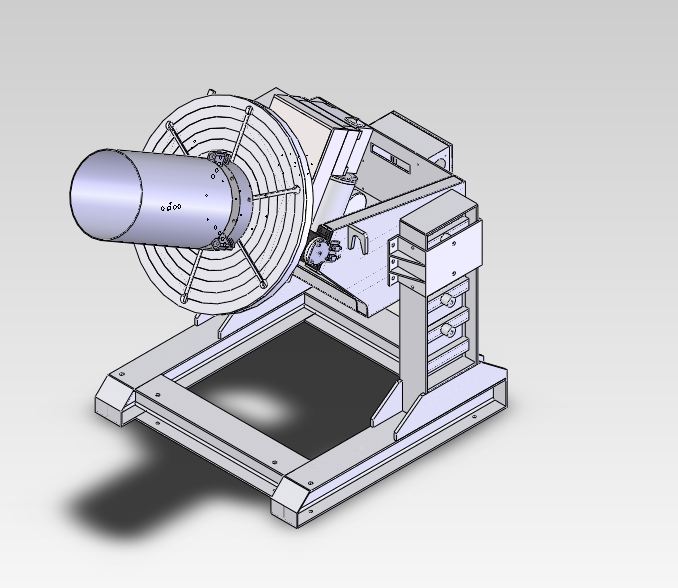

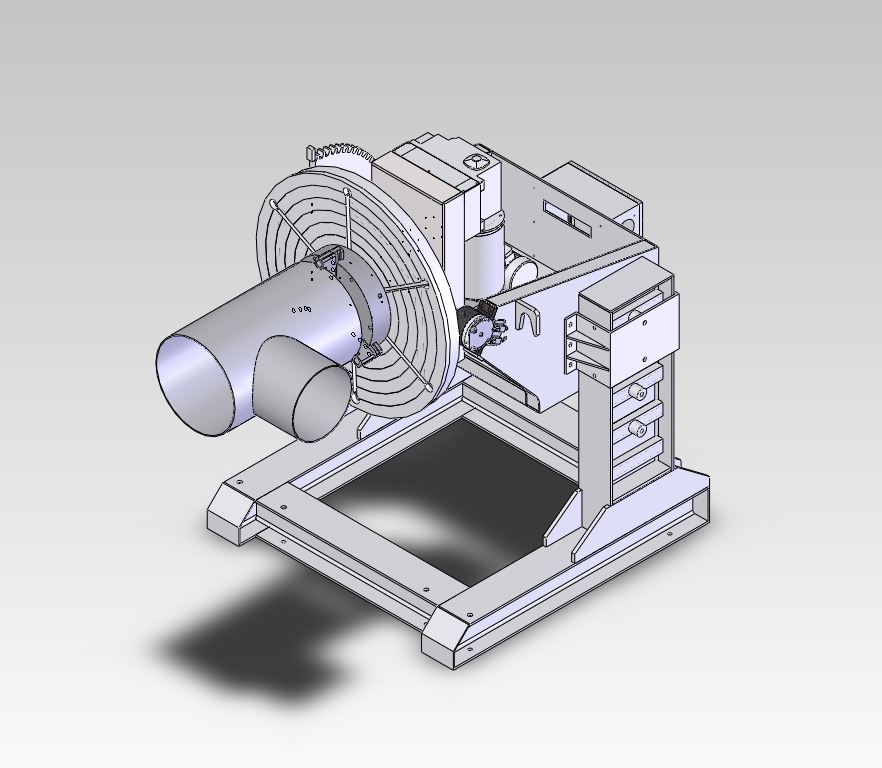

HAPOS-2TA Positioner


 Catalogue               Instruction

1.)Max Load : 2,000Kgs

2.)Table Speed : 0.15 - 1.5RPM

3.)Table Diameter : 1,200mm

4.)Spindle thru hole : 98mm

5.)Can connect a welding power source.

6.)The height of the center of the table can be adjusted to three different heights (1,175mm / 1,370mm / 1,570mm)

7.)The motor operation table tilt, tilt speed : 37.0 sec / 135°

8.)Can tilt the table after the work piece is fixed first.

When table tilt, W(kgs) * H/2(cm.) = 60,000(kgs.cm)

9.)When table and ground are vertical, W(kgs) * L/2(cm.) = 60,000(kgs.cm)

10.)Control the function
