EVPOS-750A Positioner

1.)Max Load : 750Kgs.

2.)Table Speed : 0.12 - 1.2RPM.

3.)Table Diameter : 600mm.

4.)Spindle thru hole : 58mm.

5.)Can connect a welding power source.

6.)Can change the table speed according to the demand.

7.)The motor operation table tilt,tilt speed : 17.0 sec / 90°.

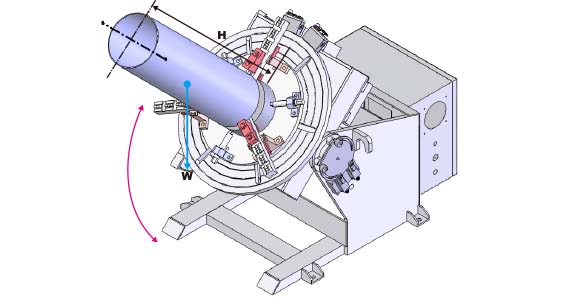

8.)Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 13,500(kgs.cm)

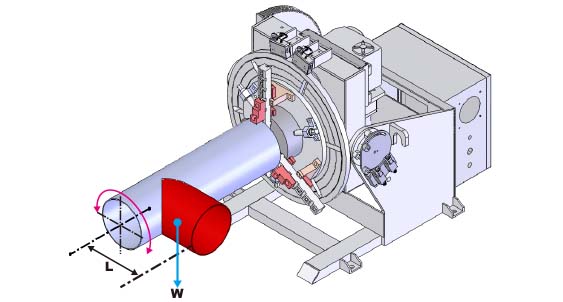

9.)When table and ground are vertical,W(kgs) * L/2(cm.) = 5,250(kgs.cm)

 10.)Control the function
