EVPOS-500A Positioner

  Previous

 Catalogue              Instruction

1.)Max Load : 500Kgs.

2.)Table Speed : 0.26 - 2.6RPM.

3.)Table Diameter : 450mm.

4.)Spindle thru hole : 58mm.

5.)Can connect a welding power source.

6.)Can change the table speed according to the demand.

7.)The motor operation table tilt,tilt speed : 18.5 sec / 90°.

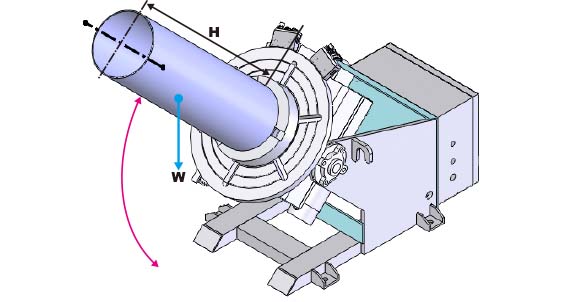

8.)Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 3,000(kgs.cm)

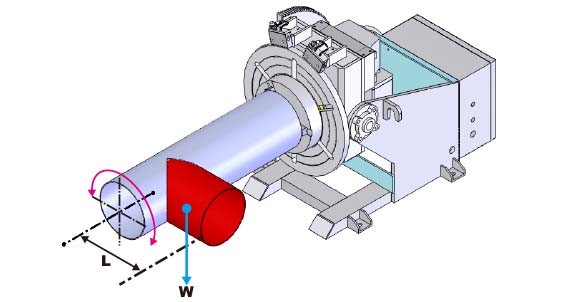

9.)When table and ground are vertical,W(kgs) * L/2(cm.) = 3,000(kgs.cm)

 10.)Control the function
