EVPOS-1TACA Positioner
1.)Max Load : 1,000Kgs.2.)Table Speed : 0.05 - 0.5RPM. 3.)Table Diameter : 900mm. 4.)Spindle thru hole : 120mm. 5.)Can connect a welding power source. 6.)Can change the table speed according to the demand. 7.)Overlap timer adjusts : 0 - 99.9sec. 8.)Start / Crater arc timer : 0 - 99.9sec. 9.)The motor operation table tilt,tilt speed : 55.0 sec / 135°. |

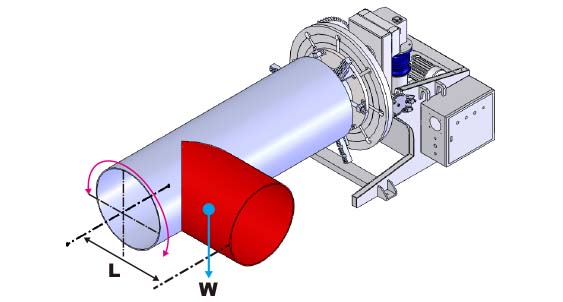

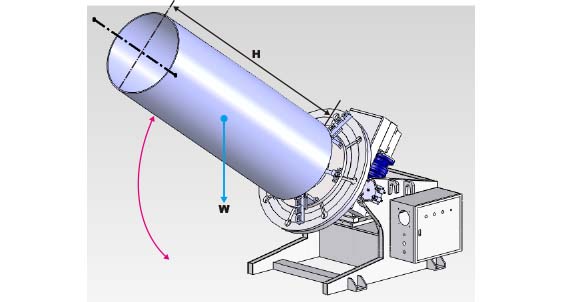

10.)Can tilt the table after the work piece is fixed first. When table tilt,W(kgs) * H/2(cm.) = 30,000(kgs.cm)11.)When table and ground are vertical,W(kgs) * L/2(cm.) = 30,000(kgs.cm) |
12.)Control the function |
