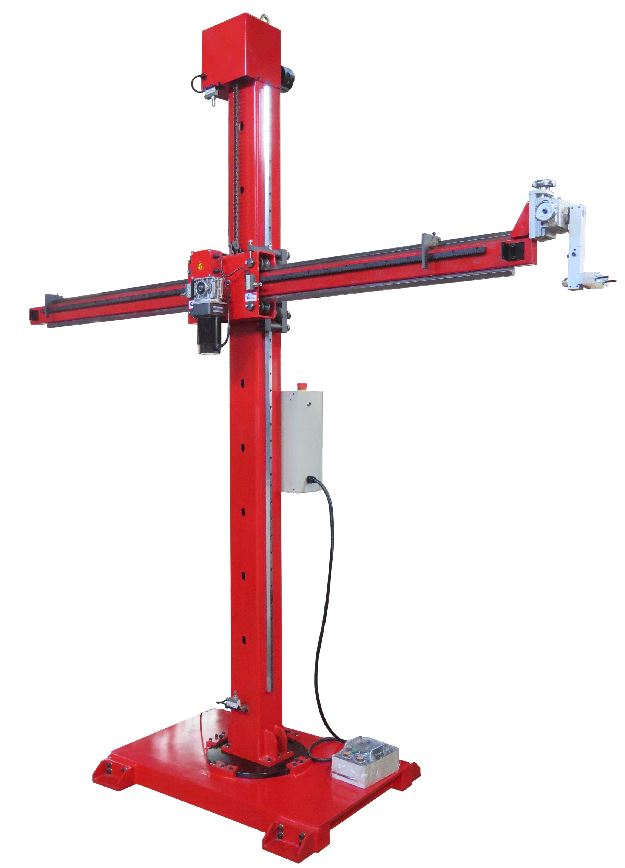

TEA-200 Lightweight Manipulator


 Catalogue              Instruction

1.)Max Load : 30Kgs.

2.)Manipulator has fixed type and rails type can choose.

3.)Boom horizontal movement stroke : 2,000mm,speed : 150 - 1,500mm/min.

4.)Boom Vertical movement stroke : 2,000mm,speed : 800mm/min.

5.)Recommend the use of fixed-position welding, does not recommend the use of linear movement welding.

6.)When the welding operation can adjust the position of the welding torch.
