THP340 Series Lathe Welding Machine

  Previous

 Catalogue              Instruction               Youtube

1.)Max Load : 250Kgs.

2.)Table Speed : 0.6 - 6.0RPM.

3.)Table Diameter : 340mm.

4.)Spindle thru hole : 46mm.

5.)Tail stock clamp strok : 300mm.

6.)Can connect two welding power source.

7.)Overlap timer adjusts : 0 - 99.9sec.

8.)Start / Crater arc timer : 0 - 99.9sec.

9.)Air cylinder operate the position of the welding torch.

10.)Propose cooperating with welder 2 cycle / 4cycle start and welding manually.

11.)When table and ground are vertical,W(kgs) * L/2(cm.) = 120(kgs.cm)

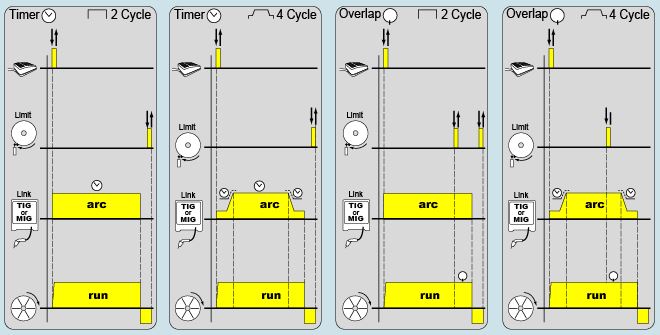

12.)Control the function

13.)Making
