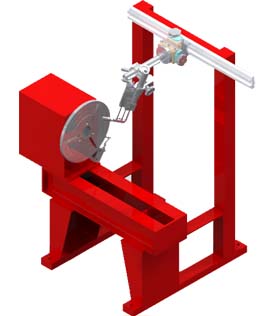

LPW260 Series Horizontal Welding Machine

  Previous

 Catalogue              Instruction

1.)Max Load : 180Kgs.

2.)Table Speed : 0.6 - 6.0RPM.

3.)Table Diameter : 340mm.

4.)Spindle thru hole : 58mm.

5.)Overlap timer adjusts : 0 - 99.9sec.

6.)Start / Crater arc timer : 0 - 99.9sec.

7.)Air cylinder operate the position of the welding torch.

8.)Propose cooperating with welder 2 cycle / 4cycle start and welding manually.

9.)When table and ground are vertical, W(kgs) * L/2(cm.) = 120(kgs.cm)

10.)Control the function

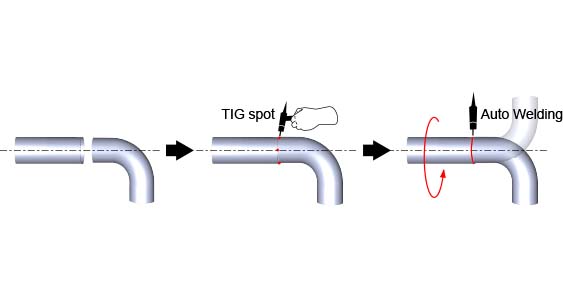

11.)Attention :Before the work piece is welded automatically,need the regular work piece position.
