PL-2000 Wall-Mounted Torch Arm

Previous


 [PDF file] Catalogue               [PDF file] Instruction

1.) Max Load: 30 Kgs
2.) Horizontal movement stroke: 2,000 mm
3.) Horizontal movement speed: 200 ~ 2,000 mm/min
4.) Choose to install TE-WL01 high detector and can operate automatic welding
5.) Can holding the MIG/MAG, TIG and Plasma welding torch
6.) When the welding operation can adjust the position of the welding torch

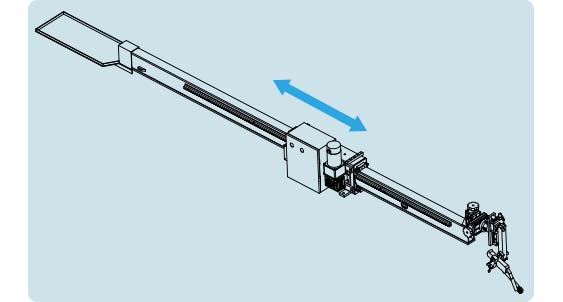

7.) Sketch of movement range

(Diagram)
